The Orie Unit Selector

District 12 · 777 homes · 99-year leasehold · Launched January 2025

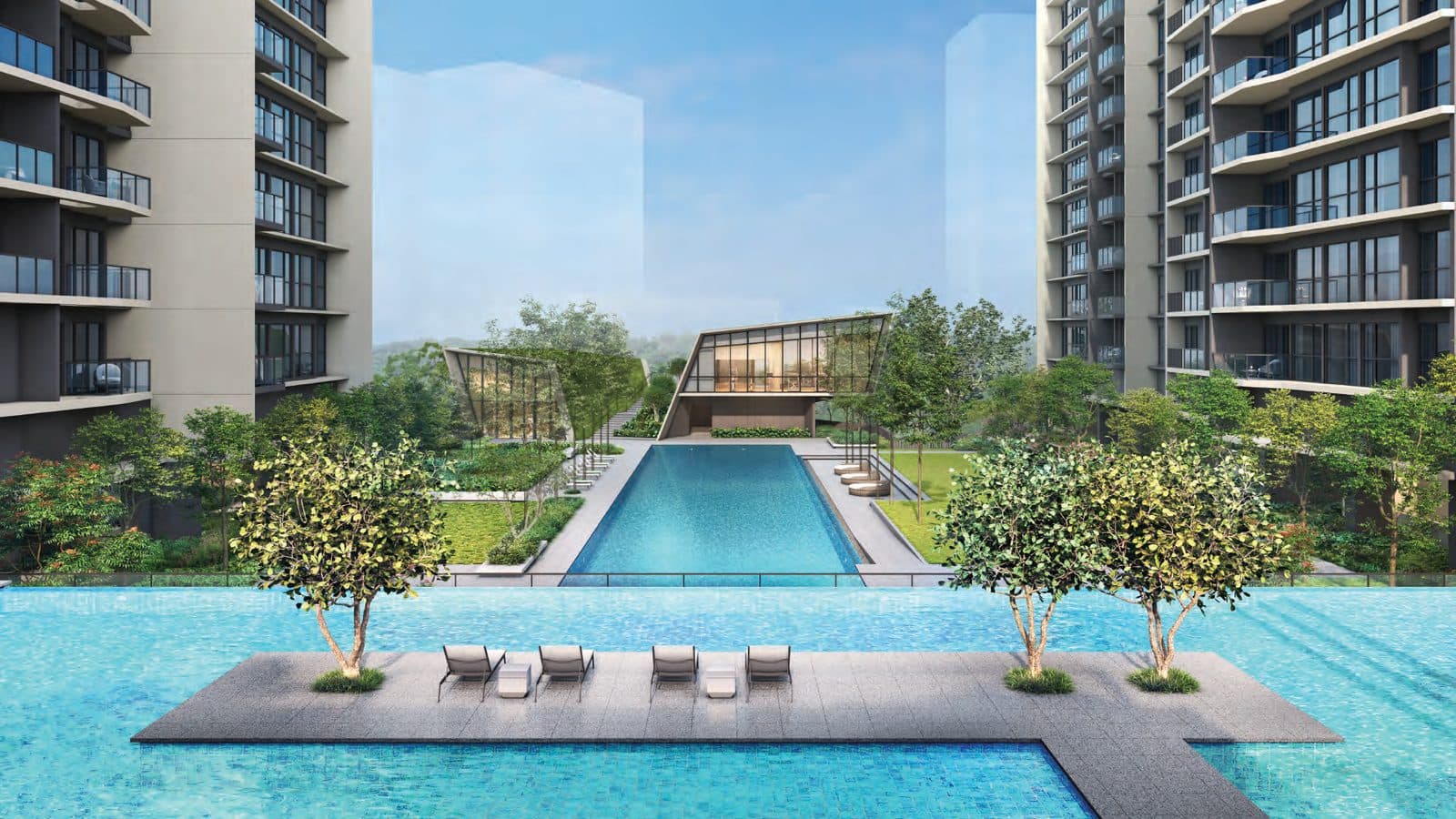

Artist's impression: City Developments Limited, Frasers Property and Sekisui House

All 20 stacks of The Orie (10 and 12 Lorong 1 Toa Payoh) in 3D on the real map, beside the buildings around them at their real heights. Pick a stack and a storey to see its facing, its view and its hours of sun.

Loading 3D map…

Storey: 20 of 40

Time: 15:00

How to read the map and the colours

Every home is drawn floor by floor, coloured by unit type, in the same colours as the developer’s schematic diagram. Tap a stack or its number to pick it. Drag to move the map; hold Ctrl or Command and drag (or right-drag) to turn and tilt it. On a phone, one finger moves it and two fingers pinch, twist and tilt it. Zoom in to see every stack number. Navy: your stack. Orange: your storey. Dashed gold line: the view straight out of the window. Dark patches: shadows of the taller buildings at 15:00 on 3/10.

1-Bedroom + Study
2-Bedroom
2-Bedroom Premium
2-Bedroom Premium + Study
3-Bedroom
3-Bedroom Premium
3-Bedroom Dual Key
4-Bedroom
4-Bedroom Premium + Study
5-Bedroom

Block

Stack in Block 10

Every stack at a glance

Show the table of all 20 stacks

Computed for the middle storey of each tower (storey 20 in the 40-storey blocks). Sun columns are hours of direct sun on the window on 21 June and 21 December after shading by other buildings; “Afternoon sun” lists the months with an hour or more after 2pm. Open the tool for any other storey or date.

Block 10 · 40 storeys · 10 stacks

Stack	Type	Faces	Looks onto	Buildings straight ahead	21 Jun	21 Dec	Afternoon sun
#01	2-Bedroom	S 180°	Spa Cove, 4 m · Floating Deck, 16 m · Relaxation Pool, 19 m	Blk 94 Lor 4 Toa Payoh, 107 m (seen over from storey 5)	0h	10.1h	Oct–Mar
#02	5-Bedroom	S 180°	Spa Cove, 6 m · Floating Deck, 18 m · Meditation Deck, 21 m	Blk 94 Lor 4 Toa Payoh, 109 m (seen over from storey 5)	0h	9.8h	Oct–Mar
#03	3-Bedroom Dual Key	N 0°	Lorong 1 Toa Payoh, 56 m · Serenity Pod, 10 m	Low-rise building, 213 m (seen over from storey 2)	12.2h	0h	Apr–Sep
#04	1-Bedroom + Study	N 0°	Lorong 1 Toa Payoh, 52 m · Serenity Pod, 5 m	988 Toa Payoh North, 275 m (seen over from storey 16)	12.2h	0h	Apr–Aug
#05	2-Bedroom	N 0°	Lorong 1 Toa Payoh, 51 m · Serenity Boardwalk, 8 m · Serenity Pod, 17 m	Blk 201 Toa Payoh North, 128 m (seen over from storey 11)	12.2h	0h	Apr–Aug
#06	3-Bedroom	N 0°	Lorong 1 Toa Payoh, 45 m	Blk 201 Toa Payoh North, 119 m (seen over from storey 11)	12.2h	0h	Apr–Sep
#07	3-Bedroom Premium	N 0°	Lorong 1 Toa Payoh, 43 m	Blk 201 Toa Payoh North, 104 m (seen over from storey 11)	12.2h	0h	Apr–Aug
#08	4-Bedroom	S 180°	50m Lap Pool, 13 m · Grand Lawn, 7 m · Garden Cabana, 38 m	Block 12, 42 m (at least as tall as this stack)	0h	10.0h	Oct–Mar
#09	2-Bedroom Premium + Study	S 180°	Relaxation Pool, 15 m · Water Feature, 24 m · Grand Lawn, 39 m	Block 12, 59 m (at least as tall as this stack)	0h	10.2h	Oct–Mar
#10	2-Bedroom Premium	S 180°	Relaxation Pool, 10 m · Serenity Pod, 6 m · Floating Deck, 21 m	Blk 94 Lor 4 Toa Payoh, 109 m (seen over from storey 5)	0h	10.3h	Oct–Feb

Block 12 · 40 storeys · 10 stacks

Stack	Type	Faces	Looks onto	Buildings straight ahead	21 Jun	21 Dec	Afternoon sun
#11	2-Bedroom	N 0°	50m Lap Pool, 19 m · Pool Deck, 27 m · Meadow Lounge, 39 m	Blk 201 Toa Payoh North, 171 m (seen over from storey 11)	12.2h	0h	Apr–Aug
#12	5-Bedroom	N 0°	Pool Deck, 21 m · Rain Tree Lounge, 4 m · 50m Lap Pool, 34 m	Blk 201 Toa Payoh North, 177 m (seen over from storey 11)	12.2h	0h	Apr–Aug
#13	3-Bedroom Premium	S 180°	Lorong 4 Toa Payoh, 54 m	Blk 54 Lor 5 Toa Payoh, 209 m (seen over from storey 12)	0h	12.0h	Oct–Feb
#14	1-Bedroom + Study	S 180°	Lorong 4 Toa Payoh, 68 m	Low-rise building, 168 m (seen over from storey 2)	0h	11.8h	Oct–Mar
#15	2-Bedroom	S 180°	Out of the estate: Low-rise building, 171 m	Low-rise building, 171 m (seen over from storey 2)	0h	11.4h	Oct–Feb
#16	3-Bedroom	S 180°	Out of the estate: Blk 94 Lor 4 Toa Payoh, 39 m · Outdoor Reading Lounge, 7 m	Blk 94 Lor 4 Toa Payoh, 39 m (seen over from storey 5)	0h	10.8h	Oct–Mar
#17	4-Bedroom	S 180°	Out of the estate: Blk 94 Lor 4 Toa Payoh, 42 m · Meadow Garden, 3 m · Garden Swing, 11 m	Blk 94 Lor 4 Toa Payoh, 42 m (seen over from storey 5)	0h	10.4h	Oct–Mar
#18	4-Bedroom Premium + Study	N 0°	50m Lap Pool, 18 m · Grand Lawn, 35 m · Pool Deck, 38 m	Block 10, 42 m (at least as tall as this stack)	12.2h	0h	Apr–Sep
#19	2-Bedroom Premium + Study	N 0°	50m Lap Pool, 20 m · Garden Cabana, 8 m · Grand Lawn, 12 m	Blk 201 Toa Payoh North, 177 m (seen over from storey 11)	9.3h	0h	May–Jul
#20	2-Bedroom Premium	N 0°	50m Lap Pool, 20 m · Garden Cabana, 9 m · Grand Lawn, 15 m	Blk 201 Toa Payoh North, 177 m (seen over from storey 11)	12.2h	0h	Apr–Aug

Frequently asked questions

Which The Orie stacks avoid the afternoon sun?

No stack avoids the afternoon sun in every month at mid-height; use the tool to compare storeys.

Which The Orie stacks take the afternoon sun most of the year?

No stack takes the afternoon sun in ten or more months at mid-height.

Which The Orie stacks have the most open view?

5 stacks have a clear view across the whole window.

Mid-height storey. Clear means all nine sight lines (±40° of the facing) pass no building as tall as the window within 400 m.

Which The Orie stacks look straight at another block?

These face a building at least as tall as themselves, so no storey looks over it.

Block 12

#08 · 42 m
#09 · 59 m

Block 10

#18 · 42 m

Which The Orie stacks face a pool?

Grouped by the pool each stack looks onto.

Spa Cove

50m Lap Pool

Relaxation Pool

Pool Deck

Counts when at least a quarter of the window looks onto water before another tower.

Which The Orie stacks face a road?

Grouped by the road each stack looks onto.

Lorong 1 Toa Payoh

Lorong 4 Toa Payoh

Road within 80 m straight ahead, with no other tower of the project in between.

Can I see the The Orie floor plans?

Yes. Pick a stack and its floor plan shows beside the map, as the developer published it: 13 layouts, each with its size, the units it applies to and a key plan. Tap it to enlarge.

How this is worked out, and its limits

Stacks are traced from the developer’s site plan onto the map, and the sun and view are worked out against the buildings around them. Details are as at 2026-10-03 and can change.

Show the method and its limits

Where the stacks are. Each stack’s outline is traced from the developer’s site plan and fitted to the land parcel on the map. Expect positions within a few metres and bearings within a few degrees. Unit types come from the developer’s schematic diagram and add up to the published unit mix, and the map uses those same colours; 20 of the 20 stacks are also named on the developer’s floor plans, and all of those match.

Facing. The facing is the side the living room and balcony are on, read from the developer’s floor plan for each of the 20 stacks. End and corner homes also have bedroom windows on a second side, which the tool does not model.

What it looks onto. The pools, lawns, courts and pavilions are read off the developer’s site plan and placed on the map with the same fit as the stacks, so they are right to within a few metres. A stack “looks onto” a pool when at least a quarter of 17 sight lines across its window (40° either side of the facing) reach the water before another tower of the project. It “faces out of the estate” when the site boundary is within 50 m straight ahead. Facility names and positions are the developer’s and can change before completion.

Heights. Towers use the developer’s storey counts at an assumed 3.3 m per storey. Buildings standing around the estate use the height in the Singapore Land Authority’s 3D model, read off OneMap 3D on 2 October 2026; where one outline covers a tower and its podium, it is cut into its parts. A building not yet in that model (still being built) uses its published storey count at 3.6 m a storey for a condo and 3.0 m for an HDB block, the averages measured for built ones. Every building is modelled as its footprint raised straight up, on level ground: no roofs, balconies, trees or slopes.

Sun. The same solar model as the Sun Path & Facing Calculator, checked to within about three minutes, with a building in the way counted as shade. The window is a point at mid-storey height on the middle of the outside wall. Balconies, overhangs and cloud cut real sun further, so read the hours as a ceiling.

Floor plans. The developer’s own pages, unaltered, matched to each stack by the layout code on the developer’s schematic diagram. A stack the plan lists as a mirror unit is the plan flipped. Floor plans: City Developments Limited, Frasers Property and Sekisui House (Transcend Residential (Toa Payoh)), The Orie e-brochure. Developer's plans, approximate and subject to change.

Prices. Prices are the developer’s price list by unit type, as at 2 Oct 2026: the lowest and highest asking price for each type, not a price for one home. Anything the developer has not published is not shown. The “Prices + budget” button places every home between the list’s lowest and highest price for its size, higher storeys and better views towards the top: an estimate inside the developer’s range, not its price for that home. Details are as at 2026-10-03 and can change. Sources: Developer's e-brochure; Frasers Property press release; TRIBE New Projects Directory; URA land lot map; HDB Property Information and URA caveats; OpenStreetMap; OneMap.
