Chuan Park Unit Selector
District 19 · 916 homes · 99-year leasehold · Launched November 2024

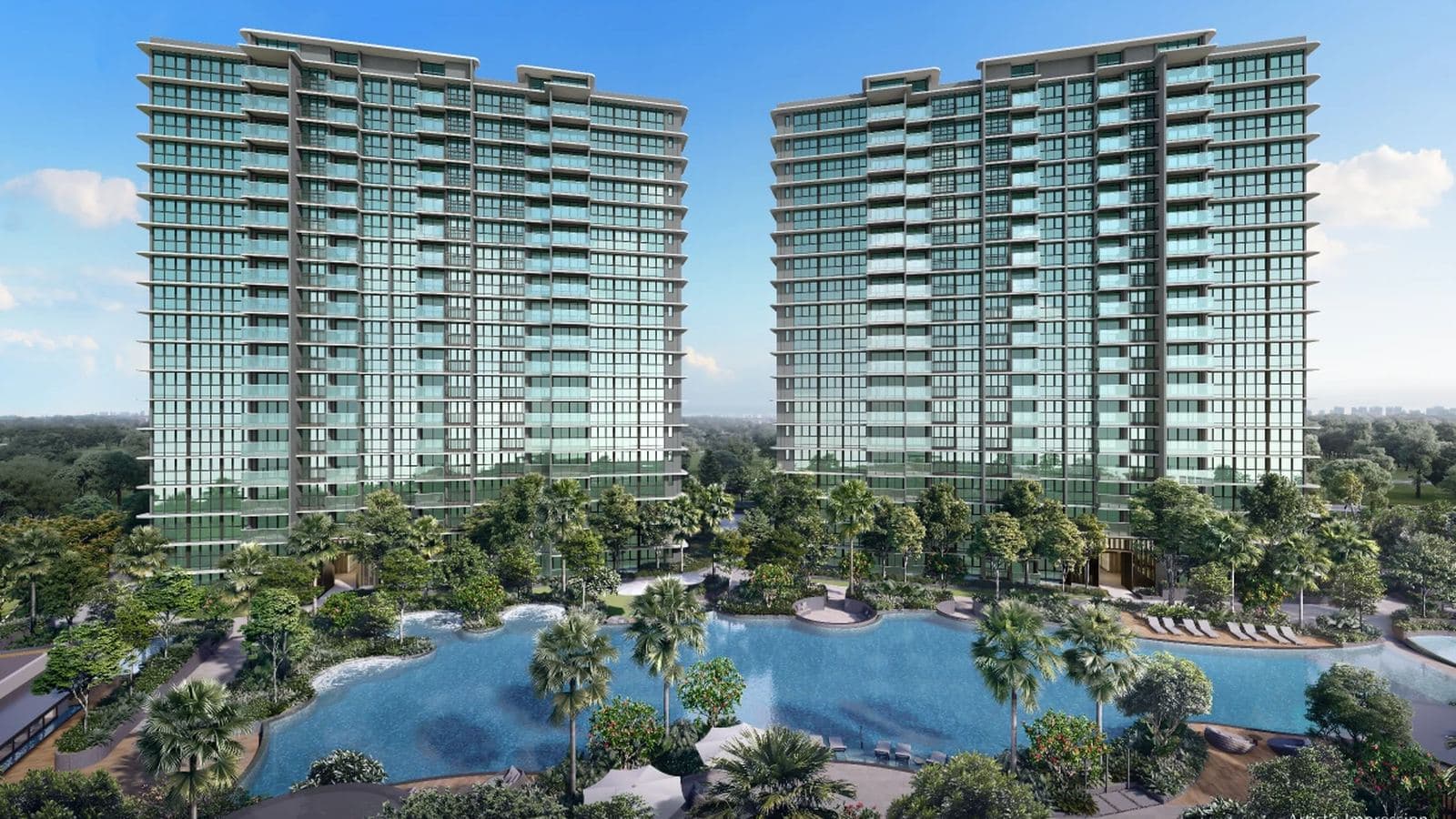

Artist's impression: Kingsford Development
All 45 stacks of Chuan Park (242, 244, 246, 248 and 250 Lorong Chuan, District 19, 916 homes, 99-year leasehold) in 3D on the real map, next to the buildings around them at their real heights. Pick a stack and a storey to see which way it faces, what the window looks at, and how many hours of sun reach it once the neighbouring blocks are counted.
Every home is drawn floor by floor, coloured by unit type, in the same colours as the developer’s site plan. Tap a stack or its number to pick it. Drag to move the map; hold Ctrl or Command and drag (or right-drag) to turn and tilt it. On a phone, two fingers move, twist and tilt it, and one finger does in full screen. Zoom in to see every stack number. Navy: your stack. Orange: your storey. Dashed gold line: the view straight out of the window. Dark patches: shadows of the taller buildings at 15:00 on 1/10.
- 2-Bedroom
- 3-Bedroom
- 4-Bedroom
- 5-Bedroom
Every stack at a glance
Computed for the middle storey of each tower (storey 10 in the 19-storey blocks, storey 11 in the 22-storey blocks). Sun columns are hours of direct sun on the window on 21 June and 21 December after shading by other buildings; “Afternoon sun” lists the months with an hour or more after 2pm. Open the tool for any other storey or date.
Show the table of all 45 stacksHide the table
Block 242 · 22 storeys · 9 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #01 | 2-Bedroom | N 354° | Kids Wading Pool, 17 m | Landed houses, 216 m (seen over from storey 4) | 11.3h | 0h | Mar–Sep |
| #02 | 2-Bedroom | N 354° | Kids Wading Pool, 16 m | Landed houses, 213 m (seen over from storey 4) | 11.3h | 0h | Mar–Sep |
| #03 | 3-Bedroom | N 354° | Kids Wading Pool, 14 m | Landed houses, 209 m (seen over from storey 4) | 11.3h | 0h | Mar–Sep |
| #04 | 3-Bedroom | S 174° | Serangoon Avenue 3, 42 m · Entrance, 35 m | The Springbloom Blk 139, 93 m (seen over from storey 18) | 0h | 11.6h | Oct–Mar |
| #05 | 3-Bedroom | S 174° | Serangoon Avenue 3, 42 m | The Springbloom Blk 141, 79 m (seen over from storey 18) | 0h | 11.6h | Oct–Mar |
| #06 | 2-Bedroom | S 174° | Serangoon Avenue 3, 43 m | The Springbloom Blk 141, 79 m (seen over from storey 18) | 0h | 9.2h | Nov–Jan |
| #07 | 3-Bedroom | S 174° | Serangoon Avenue 3, 41 m | The Springbloom Blk 141, 77 m (seen over from storey 18) | 0h | 11.6h | Oct–Mar |
| #08 | 3-Bedroom | N 354° | Lorong Chuan, 48 m | Landed houses, 242 m (seen over from storey 4) | 11.3h | 0h | Mar–Sep |
| #09 | 2-Bedroom | N 354° | Lorong Chuan, 58 m | Landed houses, 266 m (seen over from storey 4) | 12.1h | 0h | Mar–Sep |
Block 244 · 22 storeys · 9 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #10 | 2-Bedroom | S 174° | 50m Lap Pool, 12 m · Water Lounge, 23 m · Lawn, 51 m | The Springbloom Blk 139, 135 m (seen over from storey 18) | 0h | 10.3h | Oct–Mar |
| #11 | 3-Bedroom | S 174° | 50m Lap Pool, 13 m · Water Lounge, 26 m · Lawn, 57 m | The Springbloom Blk 139, 134 m (seen over from storey 18) | 0h | 10.3h | Oct–Mar |
| #12 | 3-Bedroom | N 354° | Lorong Chuan, 42 m | Landed houses, 153 m (seen over from storey 4) | 9.3h | 0h | Mar–Sep |
| #13 | 2-Bedroom | N 354° | Lorong Chuan, 54 m · Tranquil Enclave, 27 m | Landed houses, 154 m (seen over from storey 4) | 9.8h | 0h | May–Aug |
| #14 | 3-Bedroom | N 354° | Tranquil Enclave, 24 m | Landed houses, 151 m (seen over from storey 4) | 12.1h | 0h | Apr–Sep |
| #15 | 3-Bedroom | N 354° | Tranquil Enclave, 27 m | Landed houses, 163 m (seen over from storey 4) | 12.1h | 0h | Mar–Sep |
| #16 | 3-Bedroom | S 174° | 50m Lap Pool, 10 m · Lawn, 43 m · Drop-off, 60 m | Chiltern Park Blk 131, 239 m (seen over from storey 5) | 0h | 9.8h | Oct–Mar |
| #17 | 2-Bedroom | S 174° | 50m Lap Pool, 12 m · Water Lounge, 27 m · Lawn, 45 m | The Springbloom Blk 139, 145 m (seen over from storey 18) | 0h | 10.3h | Oct–Mar |
| #18 | 2-Bedroom | S 174° | 50m Lap Pool, 11 m · Water Lounge, 24 m · Lawn, 47 m | The Springbloom Blk 139, 137 m (seen over from storey 18) | 0h | 10.3h | Oct–Mar |
Block 246 · 22 storeys · 9 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #19 | 2-Bedroom | S 174° | Oasis Pool, 21 m · Kids Club, 18 m · Kids Adventure Water, 29 m | Block 250, 83 m (seen over from storey 20) | 0h | 10.0h | Oct–Feb |
| #20 | 2-Bedroom | S 174° | Oasis Pool, 18 m · Kids Club, 20 m · Kids Adventure Water, 27 m | Block 250, 84 m (seen over from storey 20) | 0h | 10.8h | Oct–Feb |
| #21 | 4-Bedroom | S 174° | Kids Adventure Water, 19 m · Oasis Pool, 64 m | Block 250, 83 m (seen over from storey 20) | 0h | 10.4h | Oct–Mar |
| #22 | 5-Bedroom | N 354° | Lorong Chuan, 46 m | Landed houses, 101 m (seen over from storey 4) | 12.0h | 0h | Mar–Sep |
| #23 | 3-Bedroom | N 354° | Lorong Chuan, 72 m · Forest Serenity, 18 m | Landed houses, 103 m (seen over from storey 4) | 12.0h | 0h | Apr–Aug |
| #24 | 2-Bedroom | N 354° | Lorong Chuan, 74 m · Forest Serenity, 17 m | Landed houses, 105 m (seen over from storey 4) | 9.0h | 0h | Apr–Sep |
| #25 | 3-Bedroom | N 354° | Lorong Chuan, 74 m | Landed houses, 109 m (seen over from storey 4) | 12.0h | 0h | Mar–Sep |
| #26 | 3-Bedroom | S 174° | Oasis Pool, 35 m · Botanical Deck, 32 m · Oasis Coves & Oasis Jacuzzi, 50 m | Block 250, 82 m (seen over from storey 20) | 0h | 9.5h | Oct–Mar |
| #27 | 2-Bedroom | S 174° | Oasis Pool, 28 m · Kids Club, 21 m · Kids Adventure Water, 34 m | Block 250, 84 m (seen over from storey 20) | 0h | 9.8h | Oct–Feb |
Block 248 · 19 storeys · 9 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #28 | 2-Bedroom | NW 326° | Oasis Coves & Oasis Jacuzzi, 15 m · Botanical Deck, 57 m · Kids Playground, 64 m | Block 246, 76 m (at least as tall as this stack) | 8.2h | 0.1h | Feb–Nov |
| #29 | 2-Bedroom | NW 326° | Oasis Coves & Oasis Jacuzzi, 18 m · Hydrotherapy Cove, 21 m · Botanical Deck, 61 m | Landed houses, 213 m (seen over from storey 4) | 7.5h | 0.8h | Jan–Nov |
| #30 | 3-Bedroom | NW 326° | Hydrotherapy Cove, 14 m · Oasis Coves & Oasis Jacuzzi, 33 m · Kids Playground, 62 m | Landed houses, 206 m (seen over from storey 4) | 7.1h | 1.7h | All year |
| #31 | 3-Bedroom | SE 146° | Out of the estate: Nanyang Junior College, 165 m | Nanyang Junior College, 165 m (seen over from storey 6) | 2.5h | 8.4h | Dec–Jan |
| #32 | 3-Bedroom | SE 146° | Out of the estate: Nanyang Junior College, 163 m · Residential Courtyard, 11 m | Nanyang Junior College, 163 m (seen over from storey 6) | 2.7h | 8.3h | Dec–Jan |
| #33 | 2-Bedroom | SE 146° | Out of the estate: Nanyang Junior College, 162 m | Nanyang Junior College, 162 m (seen over from storey 6) | 2.5h | 7.1h | None |
| #34 | 3-Bedroom | SE 146° | Out of the estate: Nanyang Junior College, 158 m | Nanyang Junior College, 158 m (seen over from storey 6) | 2.9h | 8.8h | Dec–Jan |
| #35 | 4-Bedroom | NW 326° | Oasis Coves & Oasis Jacuzzi, 14 m · Relaxation Deck & Relaxation Lawn, 11 m · Oasis Pool, 33 m | Block 246, 84 m (at least as tall as this stack) | 6.8h | 0h | Feb–Oct |
| #36 | 2-Bedroom | NW 326° | Oasis Coves & Oasis Jacuzzi, 15 m · Oasis Pool, 40 m · Botanical Deck, 54 m | Block 246, 78 m (at least as tall as this stack) | 8.1h | 0h | Feb–Oct |
Block 250 · 19 storeys · 9 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #37 | 2-Bedroom | N 354° | Oasis Pool, 18 m · Botanical Deck, 51 m · Kids Adventure Water, 58 m | Block 246, 85 m (at least as tall as this stack) | 7.9h | 0h | Apr–Sep |
| #38 | 4-Bedroom | N 354° | Oasis Pool, 18 m · Botanical Deck, 49 m · Oasis Coves & Oasis Jacuzzi, 49 m | Block 246, 83 m (at least as tall as this stack) | 7.4h | 0h | Mar–Sep |
| #39 | 3-Bedroom | S 174° | Out of the estate: Lorong Chuan MRT station (entrance), 66 m | Lorong Chuan MRT station (entrance), 66 m (seen over from storey 3) | 0h | 12.0h | Oct–Mar |
| #40 | 2-Bedroom | S 174° | Out of the estate: Lorong Chuan MRT station (entrance), 67 m | Lorong Chuan MRT station (entrance), 67 m (seen over from storey 3) | 0h | 12.0h | Oct–Mar |
| #41 | 3-Bedroom | S 174° | Out of the estate: Chiltern Park Blk 131, 251 m | Chiltern Park Blk 131, 251 m (seen over from storey 5) | 0h | 12.0h | Oct–Mar |
| #42 | 3-Bedroom | S 174° | Serangoon Avenue 3, 61 m | Chiltern Park Blk 131, 185 m (seen over from storey 5) | 0h | 11.9h | Oct–Mar |
| #43 | 3-Bedroom | N 354° | Kids Adventure Water, 14 m · Botanical Deck, 62 m · Kids Club, 67 m | Block 246, 83 m (at least as tall as this stack) | 10.1h | 0h | Mar–Sep |
| #44 | 2-Bedroom | N 354° | Oasis Pool, 19 m · Kids Adventure Water, 56 m · Botanical Deck, 57 m | Block 246, 82 m (at least as tall as this stack) | 9.7h | 0h | Apr–Aug |
| #45 | 2-Bedroom | N 354° | Oasis Pool, 18 m · Botanical Deck, 53 m · Kids Adventure Water, 56 m | Block 246, 84 m (at least as tall as this stack) | 8.3h | 0h | Apr–Sep |
Frequently asked questions
- Which Chuan Park stacks avoid the afternoon sun?
- At mid-height, 1 stack gets less than an hour of direct sun after 2pm in every month: #33. The model counts shading by neighbouring blocks; the page's tool shows the figures for any storey.
- Which Chuan Park stacks take the afternoon sun most of the year?
- 3 stacks get an hour or more of direct sun after 2pm in at least ten months at mid-height: #28, #29, #30.
- Which Chuan Park stacks have the most open view?
- At mid-height, 5 stacks have all nine sight lines across the window (±40° of the facing) clear of any building as tall as the window within 400 m: #12, #22, #23, #24, #25.
- Which Chuan Park stacks look straight at another block?
- #28 faces Block 246 76 m away; #35 faces Block 246 84 m away; #36 faces Block 246 78 m away; #37 faces Block 246 85 m away; #38 faces Block 246 83 m away; #43 faces Block 246 83 m away; #44 faces Block 246 82 m away; #45 faces Block 246 84 m away. Each of those buildings is at least as tall as the stack facing it, so no storey looks over it.
- Which Chuan Park stacks face a pool?
- Kids Wading Pool: #01, #02, #03. 50m Lap Pool: #10, #11, #16, #17, #18. Oasis Pool: #19, #20, #26, #27, #37, #38, #44, #45. Kids Adventure Water: #21, #43. Oasis Coves & Oasis Jacuzzi: #28, #29, #35, #36. Hydrotherapy Cove: #30. A stack counts when at least a quarter of the sight lines across its window reach the water before another tower.
- Which Chuan Park stacks face a road?
- Lorong Chuan: #01, #02, #08, #09, #12, #13, #14, #15, #22, #23, #24, #25. Serangoon Avenue 3: #04, #05, #06, #07, #42. These have the road within 80 m straight ahead with no other tower of the project in between.
How this is worked out, and its limits
Where the stacks are. Each stack’s outline is traced from the developer’s site plan and fitted to the land parcel on the map. Expect positions within a few metres and bearings within a few degrees. Unit types come from the colour the site plan gives each stack and add up to the published unit mix, and the map uses those same colours; 45 of the 45stacks are also named on the developer’s floor plans, and all of those match.
Facing. The facing is the side the living room and balcony are on, read from the developer’s floor plan for each of the 45 stacks. End and corner homes also have bedroom windows on a second side, which the tool does not model.
What it looks onto. The pools, lawns, courts and pavilions are read off the developer’s site plan and placed on the map with the same fit as the stacks, so they are right to within a few metres. A stack “looks onto” a pool when at least a quarter of 17 sight lines across its window (40° either side of the facing) reach the water before another tower of the project. It “faces out of the estate” when the site boundary is within 50 m straight ahead. Facility names and positions are the developer’s and can change before completion.
Heights. Towers use the developer’s storey counts at an assumed 3.2 m per storey. HDB blocks use HDB’s highest-storey records; other buildings use their storey count or a typical height for their type. Every building is modelled as its footprint raised straight up: no roofs, balconies, trees or slopes.
Sun. The same solar model as the Sun Path & Facing Calculator, checked to within about three minutes, with a building in the way counted as shade. The window is a point at mid-storey height on the middle of the outside wall. Balconies, overhangs and cloud cut real sun further, so read the hours as a ceiling.
Prices. Prices are the developer’s price list by unit type, as at 1 Oct 2026: the lowest and highest asking price for each type, not a price for one home. Floor plans and anything the developer has not published are not shown. Details are as at 2026-10-01 and can change. Sources: Developer website, e-brochure and floor plans; URA land lot map; URA Developers’ Sales; HDB Property Information; OpenStreetMap; OneMap.
