Nava Grove Unit Selector
District 21 · 552 homes · 99-year leasehold · Launched November 2024

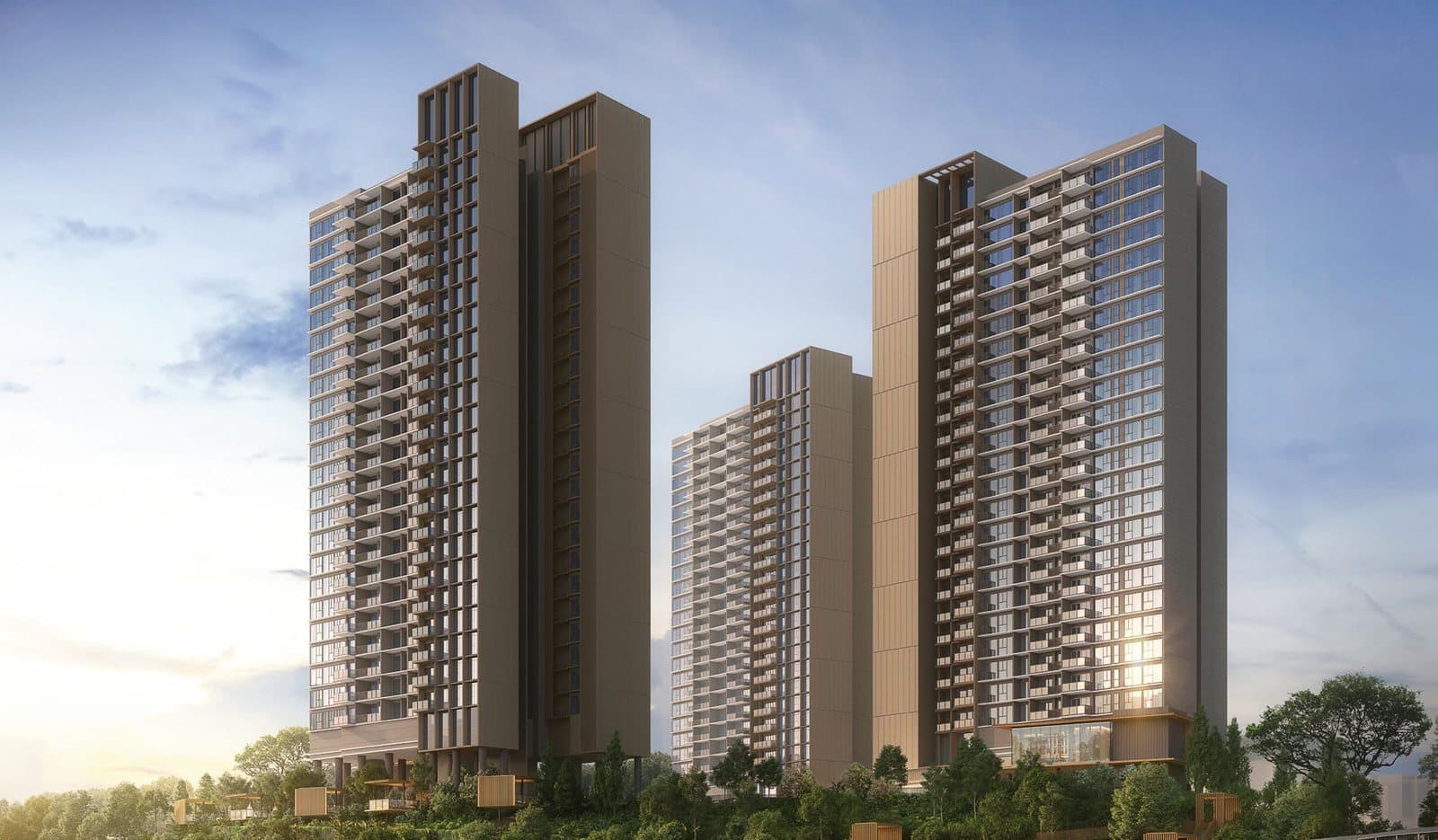

Artist's impression: Sunway MCL and Sinarmas Land
All 24 stacks of Nava Grove (38, 40 and 42 Pine Grove, District 21, 552 homes, 99-year leasehold) in 3D on the real map, next to the buildings around them at their real heights. Pick a stack and a storey to see which way it faces, what the window looks at, and how many hours of sun reach it once the neighbouring blocks are counted.
Every home is drawn floor by floor, coloured by unit type, in the same colours as the developer’s unit distribution chart. Tap a stack or its number to pick it. Drag to move the map; hold Ctrl or Command and drag (or right-drag) to turn and tilt it. On a phone, two fingers move, twist and tilt it, and one finger does in full screen. Zoom in to see every stack number. Navy: your stack. Orange: your storey. Dashed gold line: the view straight out of the window. Dark patches: shadows of the taller buildings at 15:00 on 1/10.
- 2-Bedroom
- 2-Bedroom Premium
- 2-Bedroom + Study
- 3-Bedroom
- 3-Bedroom Premium
- 4-Bedroom
- 4-Bedroom + Study
- 4-Bedroom Premium + Private Lift
- 5-Bedroom Premium + Private Lift
Every stack at a glance
Computed for the middle storey of each tower (storey 12 in the 24-storey blocks). Sun columns are hours of direct sun on the window on 21 June and 21 December after shading by other buildings; “Afternoon sun” lists the months with an hour or more after 2pm. Open the tool for any other storey or date.
Show the table of all 24 stacksHide the table
Block 38 · 24 storeys · 8 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #01 | 2-Bedroom | S 180° | Out of the estate: Pine Grove Blk 1M, 72 m · Water Cascade, 25 m | Pine Grove Blk 1M, 72 m (seen over from storey 18) | 0h | 7.8h | Dec–Jan |
| #02 | 3-Bedroom Premium | S 180° | Out of the estate: Pine Grove Blk 1M, 74 m · Rain Trees Courtyard, 15 m · Water Cascade, 27 m | Pine Grove Blk 1M, 74 m (seen over from storey 18) | 0h | 11.2h | Oct–Mar |
| #03 | 5-Bedroom Premium + Private Lift | N 0° | Lagoon Pool, 19 m · Jacuzzi Cove, 42 m · Central Lawn, 48 m | Open, nothing within 400 m | 10.9h | 0h | Apr–Sep |
| #04 | 2-Bedroom + Study | N 0° | Lagoon Pool, 20 m · Putting Green, 17 m · Jacuzzi Cove, 41 m | Open, nothing within 400 m | 10.8h | 0h | Apr–Sep |
| #05 | 2-Bedroom + Study | N 0° | Jacuzzi Cove, 28 m · Putting Green, 17 m · BBQ Pavilion, 58 m | Open, nothing within 400 m | 10.8h | 0h | Apr–Sep |
| #06 | 3-Bedroom Premium | N 0° | Out of the estate · Jacuzzi Cove, 52 m · BBQ Pavilion, 60 m | Open, nothing within 400 m | 10.5h | 0h | Apr–Aug |
| #07 | 3-Bedroom | S 180° | Out of the estate: Pine Grove Blk 1G to 1L, 105 m · Drop-off Lounge, 18 m · Arrival Plaza, 29 m | Pine Grove Blk 1G to 1L, 105 m (seen over from storey 18) | 0h | 11.1h | Oct–Mar |
| #08 | 2-Bedroom | S 180° | Out of the estate: Pine Grove Blk 1M, 67 m · Water Cascade, 25 m · Arrival Plaza, 33 m | Pine Grove Blk 1M, 67 m (seen over from storey 18) | 0h | 11.1h | Oct–Feb |
Block 40 · 24 storeys · 8 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #09 | 2-Bedroom Premium | SSE 166° | Out of the estate: Pine Grove Blk 1G to 1L, 125 m · Pet's Lawn, 10 m · Multipurpose Court, 28 m | Pine Grove Blk 1G to 1L, 125 m (seen over from storey 18) | 0h | 8.6h | Nov–Jan |
| #10 | 3-Bedroom Premium | SSE 166° | Out of the estate: Pine Grove Blk 1G to 1L, 120 m · Forest Walk, 6 m · Pet's Lawn, 12 m | Pine Grove Blk 1G to 1L, 120 m (seen over from storey 18) | 0h | 10.0h | Oct–Feb |
| #11 | 4-Bedroom | NNW 346° | Jacuzzi Seats, 28 m · Swing Garden, 28 m · Jacuzzi Lounger, 32 m | 31B Clementi Crescent, 370 m (seen over from storey 4) | 11.9h | 0h | Mar–Oct |
| #12 | 2-Bedroom Premium | NNW 346° | Jacuzzi Seats, 24 m · Sunning Lawn, 10 m · Jacuzzi Lounger, 31 m | 31A Clementi Crescent, 371 m (seen over from storey 4) | 12.2h | 0h | Mar–Sep |
| #13 | 3-Bedroom | NNW 346° | Wading Pool, 18 m · Sunning Lawn, 11 m · Jacuzzi Seats, 28 m | 29B Clementi Crescent, 383 m (seen over from storey 4) | 12.2h | 0h | Mar–Oct |
| #14 | 4-Bedroom + Study | ENE 76° | Lagoon Pool, 14 m · Central Lawn, 42 m · Jacuzzi Cove, 56 m | Pinetree Hill Blk 36, 167 m (at least as tall as this stack) | 6.4h | 2.7h | None |
| #15 | 4-Bedroom | SSE 166° | Children's Pool, 3 m · Children's Playground, 24 m · Tennis Court, 35 m | Pine Grove Blk 1M, 82 m (seen over from storey 18) | 0h | 10.7h | Oct–Feb |
| #16 | 2-Bedroom Premium | SSE 166° | Children's Pool, 3 m · Multipurpose Court, 30 m · Tennis Court, 37 m | Pine Grove Blk 1M, 61 m (seen over from storey 18) | 0h | 8.3h | Oct–Feb |
Block 42 · 24 storeys · 8 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #17 | 2-Bedroom | NNW 341° | Ulu Pandan Road, 33 m | 27 Clementi Crescent, 357 m (seen over from storey 4) | 8.7h | 0h | Mar–Sep |
| #18 | 3-Bedroom Premium | NNW 341° | Ulu Pandan Road, 34 m | 25B Clementi Crescent, 358 m (seen over from storey 4) | 12.2h | 0h | Mar–Oct |
| #19 | 4-Bedroom Premium + Private Lift | SSE 161° | Jacuzzi Cove, 22 m · Social Lawn, 16 m · Lagoon Pool, 41 m | Block 38, 73 m (at least as tall as this stack) | 0h | 10.3h | Nov–Feb |
| #20 | 3-Bedroom | SSE 161° | Lagoon Pool, 26 m · Central Lawn, 17 m · Jacuzzi Cove, 32 m | Block 38, 65 m (at least as tall as this stack) | 0h | 11.1h | Nov–Feb |
| #21 | 2-Bedroom Premium | SSE 161° | Lagoon Pool, 20 m · Central Lawn, 19 m · Exercise Deck, 38 m | Block 38, 69 m (at least as tall as this stack) | 0h | 10.5h | Nov–Feb |
| #22 | 4-Bedroom Premium + Private Lift | SSE 161° | Wading Pool, 13 m · Exercise Deck, 32 m · Lagoon Pool, 50 m | Pine Grove Blk 1M, 162 m (seen over from storey 18) | 0h | 10.9h | Nov–Feb |
| #23 | 3-Bedroom | NNW 341° | Ulu Pandan Road, 29 m | 29A Clementi Crescent, 330 m (seen over from storey 4) | 12.2h | 0h | Feb–Oct |
| #24 | 2-Bedroom | NNW 341° | Ulu Pandan Road, 32 m | 27B Clementi Crescent, 343 m (seen over from storey 4) | 10.9h | 0h | Apr–Aug |
Frequently asked questions
- Which Nava Grove stacks avoid the afternoon sun?
- At mid-height, 1 stack gets less than an hour of direct sun after 2pm in every month: #14. The model counts shading by neighbouring blocks; the page's tool shows the figures for any storey.
- Which Nava Grove stacks take the afternoon sun most of the year?
- No stack takes the afternoon sun in ten or more months at mid-height.
- Which Nava Grove stacks have the most open view?
- At mid-height, 4 stacks have all nine sight lines across the window (±40° of the facing) clear of any building as tall as the window within 400 m: #17, #18, #23, #24.
- Which Nava Grove stacks look straight at another block?
- #19 faces Block 38 73 m away; #20 faces Block 38 65 m away; #21 faces Block 38 69 m away. Each of those buildings is at least as tall as the stack facing it, so no storey looks over it.
- Which Nava Grove stacks face a pool?
- Lagoon Pool: #03, #04, #14, #20, #21. Jacuzzi Cove: #05, #19. Jacuzzi Seats: #11, #12. Wading Pool: #13, #22. Children's Pool: #15, #16. A stack counts when at least a quarter of the sight lines across its window reach the water before another tower.
- Which Nava Grove stacks face a road?
- Ulu Pandan Road: #11, #12, #17, #18, #23, #24. These have the road within 80 m straight ahead with no other tower of the project in between.
How this is worked out, and its limits
Where the stacks are. Each stack’s outline is traced from the developer’s site plan and fitted to the land parcel on the map. Expect positions within a few metres and bearings within a few degrees. Unit types come from the developer’s unit distribution chart and add up to the published unit mix, and the map uses those same colours; 24 of the 24stacks are also named on the developer’s floor plans, and all of those match.
Facing. The facing is the side the living room and balcony are on, read from the developer’s floor plan for each of the 24 stacks. End and corner homes also have bedroom windows on a second side, which the tool does not model.
What it looks onto. The pools, lawns, courts and pavilions are read off the developer’s site plan and placed on the map with the same fit as the stacks, so they are right to within a few metres. A stack “looks onto” a pool when at least a quarter of 17 sight lines across its window (40° either side of the facing) reach the water before another tower of the project. It “faces out of the estate” when the site boundary is within 50 m straight ahead. Facility names and positions are the developer’s and can change before completion.
Heights. Towers use the developer’s storey counts at an assumed 3.2 m per storey. HDB blocks use HDB’s highest-storey records; other buildings use their storey count or a typical height for their type. Every building is modelled as its footprint raised straight up: no roofs, balconies, trees or slopes.
Sun. The same solar model as the Sun Path & Facing Calculator, checked to within about three minutes, with a building in the way counted as shade. The window is a point at mid-storey height on the middle of the outside wall. Balconies, overhangs and cloud cut real sun further, so read the hours as a ceiling.
Prices. Prices are the developer’s price list by unit type, as at 1 Oct 2026: the lowest and highest asking price for each type, not a price for one home. Floor plans and anything the developer has not published are not shown. Details are as at 2026-10-01 and can change. Sources: Developer website and e-brochure; Sunway MCL corporate website; URA land lot map; URA monthly developer sales; OpenStreetMap; OneMap.
