Tengah Garden Residences
District 24 · 863 homes · 99-year leasehold · Sold out · under construction

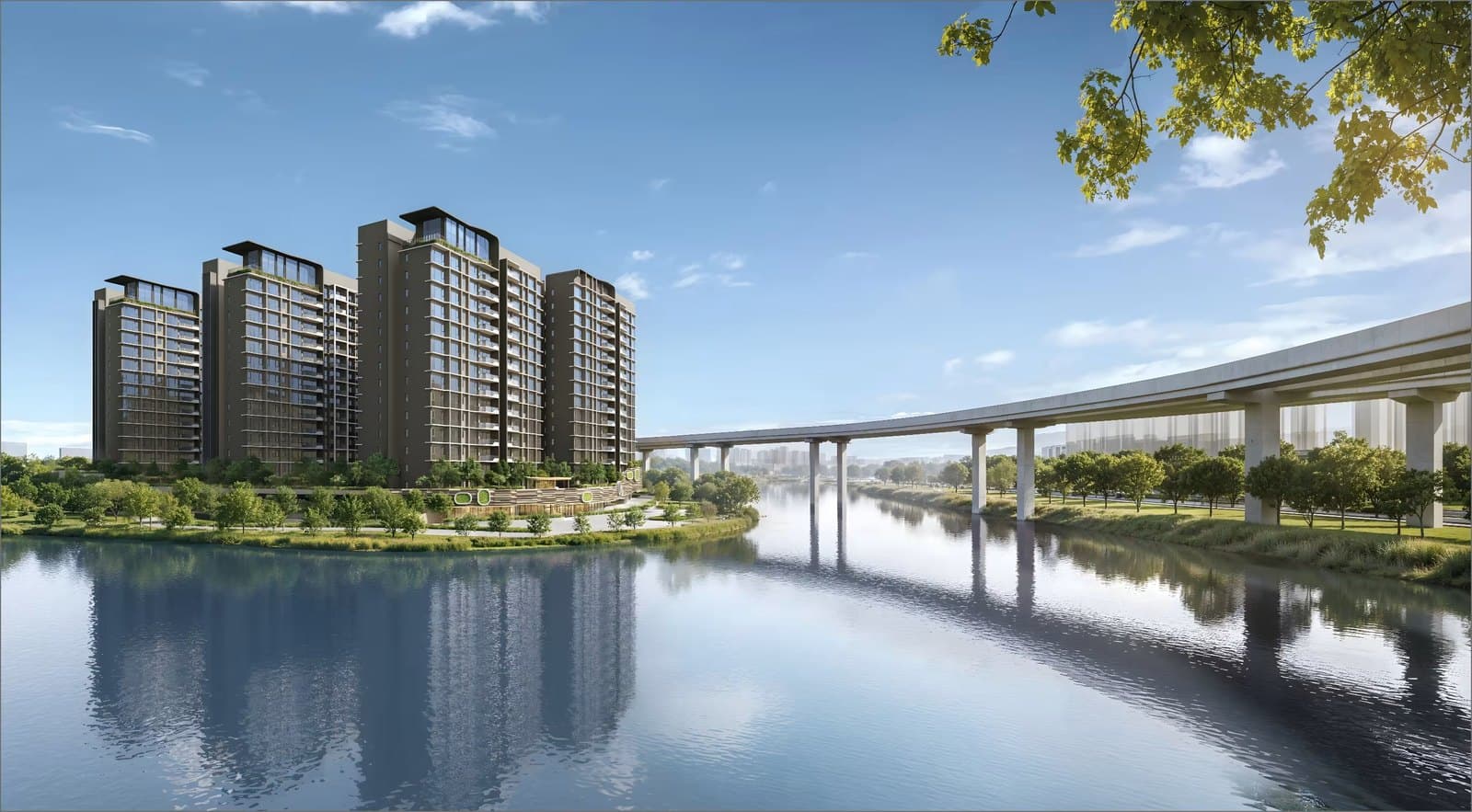

Artist's impression: Hong Leong Holdings, GuocoLand and CSC Land Group
All 59 stacks of Tengah Garden Residences (11, 13, 15, 17, 19, 21, 23, 25 and 27 Tengah Garden Avenue) in 3D on the real map, beside the buildings around them at their real heights. Pick a stack and a storey to see its facing, its view and its hours of sun. Prices, the unit mix and its grade are on the Tengah Garden Residences launch page.
Coolest stacksEvery stack ranked by direct sun after 2pm, least first.OpenHide
Working out every stack…
How to read the map and the colours
Tengah Garden Residences in brief
- Least afternoon sun
- Stacks #38, #39 (storey 2), #39 (storeys 3 to 16), #46: under an hour of direct sun after 2pm in every month.
- Clear view
- Stacks #07, #08, #11 (storeys 2 to 9), #11 (storeys 12 to 16), #19 (storeys 2 to 9), #19 (storeys 12 to 16): no building as tall as the window within 400 m.
- Blocked view
- Stacks #03, #04, #05 (storey 2), #05 (storeys 3 to 16), #06, #09 and 34 more: face Block 27, Block 21, Block 19 and 6 more, as tall as the stack or taller.
Read at the middle storey of each stack. The tool above shows any storey.
Every stack at a glance
Show the table of all 59 stacksHide the table
Computed for the middle storey of each tower (storey 8 in the 16-storey blocks), or the middle of its own storeys for a stack that does not have that storey. Sun columns are hours of direct sun on the window on 21 June and 21 December after shading by other buildings; “Afternoon sun” lists the months with an hour or more after 2pm. Open the tool for any other storey or date.
Block 11 · 16 storeys · 8 stacks
Block 13 · 16 storeys · 4 stacks
Block 15 · 16 storeys · 8 stacks
Block 17 · 16 storeys · 7 stacks
Block 19 · 16 storeys · 8 stacks
Block 21 · 16 storeys · 8 stacks
Block 23 · 16 storeys · 4 stacks
Block 25 · 16 storeys · 4 stacks
Block 27 · 16 storeys · 8 stacks
Frequently asked questions
Which Tengah Garden Residences stacks avoid the afternoon sun?
3 stacks get under an hour of direct sun after 2pm, every month of the year.
- #38
- #39
- #46
Mid-height storey, after shading by neighbouring blocks. The tool above shows any storey.
Which Tengah Garden Residences stacks take the afternoon sun most of the year?
15 stacks get an hour or more of direct sun after 2pm in at least ten months.
- #03
- #04
- #05 (storey 2)
- #06
- #09
- #29
- #37
- #43
- #44
- #45
- #50
- #51
- #53
- #58
- #59
Mid-height storey.
Which Tengah Garden Residences stacks have the most open view?
4 stacks have a clear view across the whole window.
- #07
- #08
- #11
- #19
Mid-height storey. Clear means all nine sight lines (±40° of the facing) pass no building as tall as the window within 400 m.
Which Tengah Garden Residences stacks look straight at another block?
These face a building at least as tall as themselves, so no storey looks over it.
Block 27
- #03 · 24 m
- #04 · 23 m
- #05 (storey 2) · 23 m
- #05 (storeys 3 to 16) · 23 m
- #06 · 25 m
- #48 · 23 m
- #49 · 26 m
Block 21
- #09 · 62 m
- #10 · 60 m
- #28 · 25 m
- #29 · 25 m
- #47 · 25 m
Block 19
- #15 · 25 m
- #16 (storey 2) · 26 m
- #16 (storeys 3 to 16) · 26 m
- #17 · 26 m
- #18 · 24 m
- #40 · 25 m
- #41 · 21 m
Jurong Region Line viaduct (being built)
- #24 (storey 2) · 88 m
Block 15
- #30 · 25 m
- #31 (storey 2) · 26 m
- #31 (storeys 3 to 16) · 26 m
- #32 · 26 m
- #33 · 24 m
Block 23
- #36 · 25 m
- #37 · 29 m
- #58 · 32 m
Block 13
- #38 · 58 m
- #39 (storey 2) · 62 m
- #39 (storeys 3 to 16) · 62 m
Block 11
- #46 · 79 m
- #54 · 25 m
- #55 · 23 m
- #56 (storey 2) · 23 m
- #56 (storeys 3 to 16) · 23 m
- #57 · 24 m
Block 25
- #52 · 30 m
- #53 · 25 m
- #59 · 25 m
Which Tengah Garden Residences stacks face a pool?
Grouped by the pool each stack looks onto.
Swimming Pool Zone
- #09
- #10
- #28
- #29
- #35
- #38
- #39 (storey 2)
- #39 (storeys 3 to 16)
- #40
- #41
Children's Aqua Fun Pool with Waterplay Equipment
- #42
Aqua Fitness Courtyard
- #48
- #49
- #52
- #53
- #58
- #59
Counts when at least a quarter of the window looks onto water before another tower.
Which Tengah Garden Residences stacks face a road?
Grouped by the road each stack looks onto.
Tengah Garden Avenue
- #01
- #02
- #07
- #08
- #11 (storeys 2 to 9)
- #11 (storeys 12 to 16)
- #12
- #13
- #14
- #19 (storeys 2 to 9)
- #19 (storeys 12 to 16)
- #20
- #21
- #22
- #26 (storeys 2 to 9)
- #26 (storeys 12 to 16)
- #27
Road within 80 m straight ahead, with no other tower of the project in between.
Can I see the Tengah Garden Residences floor plans?
Yes. Pick a stack and its floor plan shows beside the map, as the developer published it: 24 layouts, each with its size, the units it applies to and a key plan. Tap it to enlarge.
How this is worked out, and its limits
Stacks are traced from the developer’s site plan onto the map, and the sun and view are worked out against the buildings around them. Details are as at 2026-10-01 and can change.
Show the method and its limitsHide the method
Where the stacks are. Each stack’s outline is traced from the developer’s site plan and fitted to the land parcel on the map. Expect positions within a few metres and bearings within a few degrees. Unit types come from the colour the site plan gives each stack and add up to the published unit mix, and the map uses those same colours; 59 of the 59 stacks are also named on the developer’s floor plans, and all of those match.
Facing. The facing is the side the living room and balcony are on, read from the developer’s floor plan for each of the 59 stacks. End and corner homes also have bedroom windows on a second side, which the tool does not model.
What it looks onto. The pools, lawns, courts and pavilions are read off the developer’s site plan and placed on the map with the same fit as the stacks, so they are right to within a few metres. A stack “looks onto” a pool when at least a quarter of 17 sight lines across its window (40° either side of the facing) reach the water before another tower of the project. It “faces out of the estate” when the site boundary is within 50 m straight ahead. Facility names and positions are the developer’s and can change before completion.
Heights. Towers use the developer’s storey counts at an assumed 3.3 m per storey. Buildings standing around the estate use the height in the Singapore Land Authority’s 3D model, read off OneMap 3D on 2 October 2026; where one outline covers a tower and its podium, it is cut into its parts. A building not yet in that model (still being built) uses its published storey count at 3.6 m a storey for a condo and 3.0 m for an HDB block, the averages measured for built ones. Every building is modelled as its footprint raised straight up, on level ground: no roofs, balconies, trees or slopes.
Sun. The same solar model as the Sun Path & Facing Calculator, checked to within about three minutes, with a building in the way counted as shade. The window is a point at mid-storey height on the middle of the outside wall. Balconies, overhangs and cloud cut real sun further, so read the hours as a ceiling.
Sun across the year and coolest stacks. The year grid tests the window every half hour on the 15th of each month. Coolest stacks ranks by the average of those twelve days in hours of direct sun after 2pm, least first, at the middle storey of each stack with shade from other buildings taken off; the hours for the whole day sit beside it. For a home at the end of its block the afternoon figure also counts the sun on its end wall.
Floor plans. The developer’s own pages, unaltered, matched to each stack by the layout code on the developer’s schematic diagram. A stack the plan lists as a mirror unit is the plan flipped. Floor plans: Hong Leong Holdings, GuocoLand and CSC Land Group (Tengah Garden Development and TGA Development), Tengah Garden Residences e-brochure. Developer's plans, approximate and subject to change.
Not shown. Prices, and anything the developer has not published. Details are as at 2026-10-01 and can change. Sources: Developer website, e-brochure and floor plans; GuocoLand Annual Report 2026 and results release of 28 August 2026; URA land lot map; HDB Property Information; OpenStreetMap; OneMap.
