Compare Watercolours layouts
45 layouts, 416 homes. Put two or three side by side: the plan, the size, what you gain and give up, and which way each stack faces.
Pick two or three layouts
The first one you pick is the one the others are measured against.
2-bed
3-bed
4-bed
Measured against

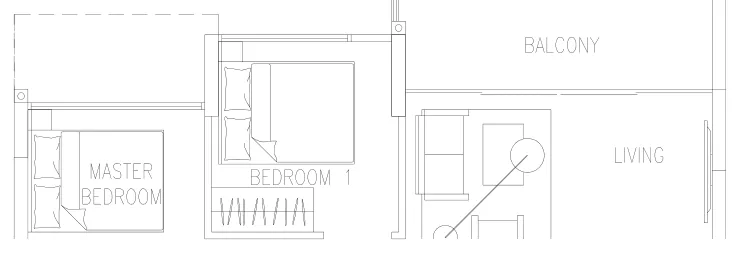

A1b
2-Bedroom
- Size
- 743 sq ft
- Stacks
- 4 · 16 homes
Option 2

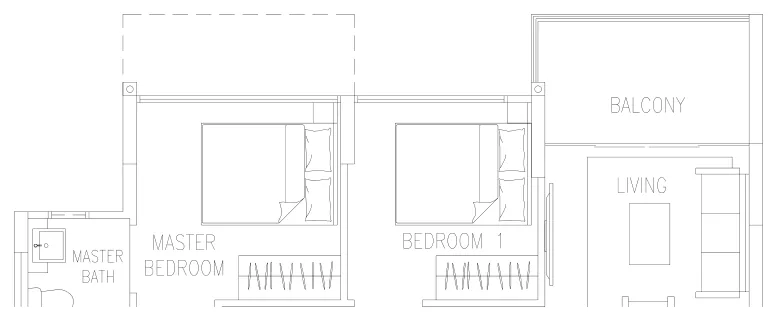

B1b
3-Bedroom Compact
- Size
- 915 sq ft
- Stacks
- 10 · 40 homes

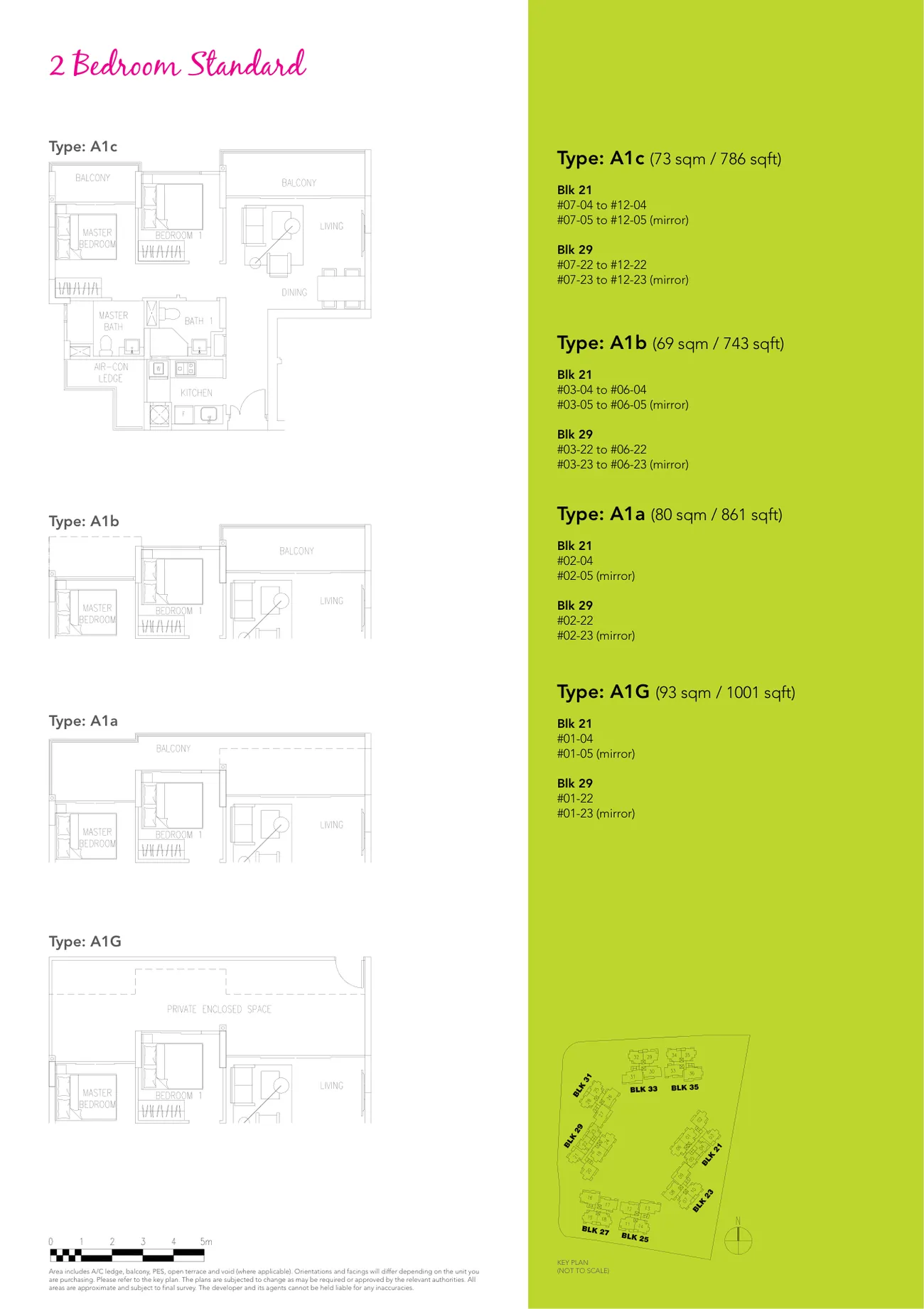

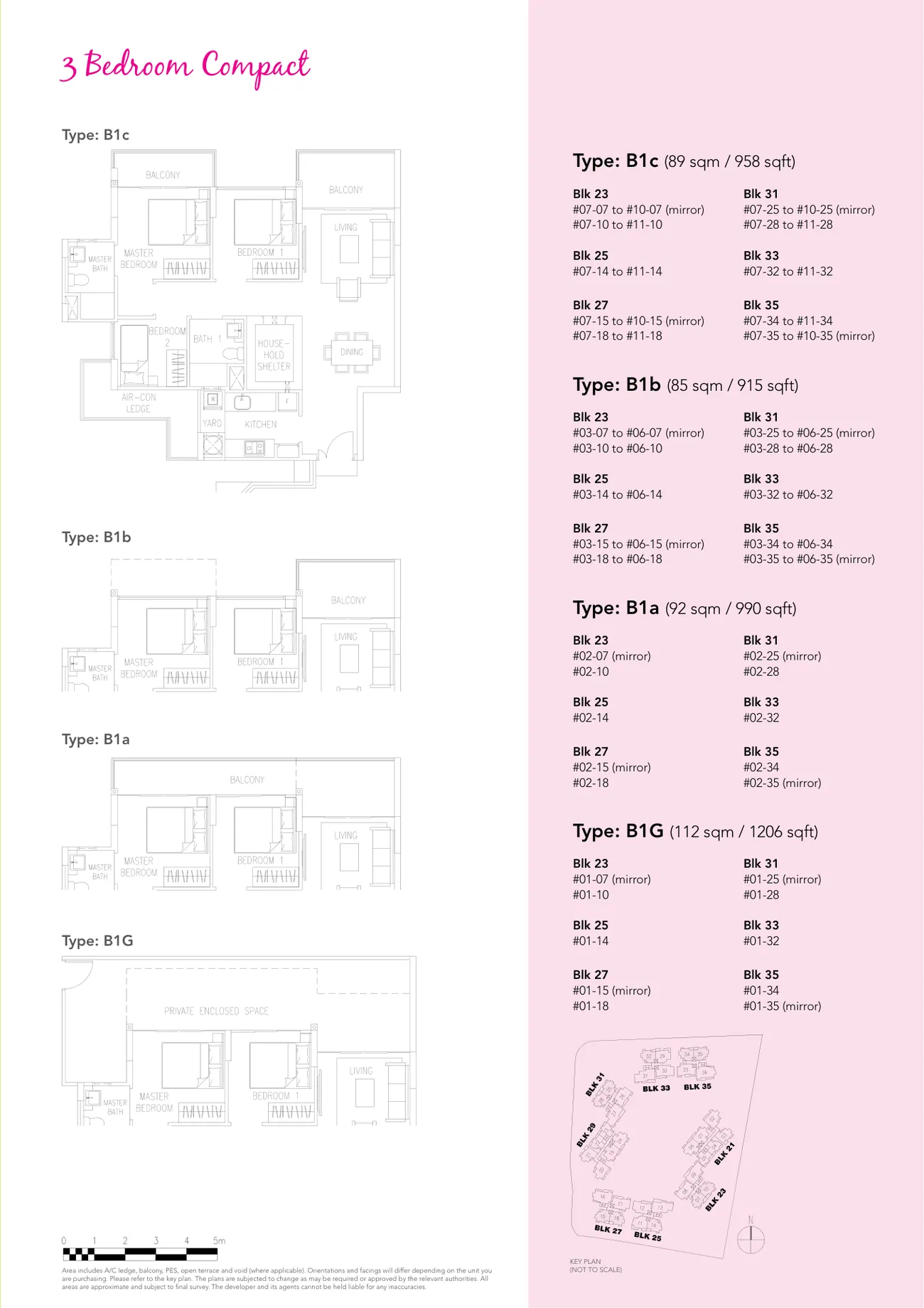

Not drawn to the same scale. Tap a plan for the developer’s full page. Floor plans: Huge Development Pte Ltd, Watercolours floor plan book. Developer's plans, approximate and subject to change.
B1b instead of A1b
Space
+172 sq ft
You gain
- 1 more bedroom (3 against 2)
- 172 sq ft more space (915 against 743)
- More stacks to choose from: 10 (facing SE, S, NW, N) against 4 (facing SE, NW)
You give up
Nothing the figures show against A1b.
Where each layout faces
Every stack that carries each layout. Tap a stack to see that home on the map, its view and its sun by the hour.
| Stack | Faces | Looks onto | Sun after 2pm |
|---|---|---|---|
| #05 (storeys 3 to 6)Blk 21 · storeys 3 to 6 | SE | Out of the estate: Seastrand, 53 m | 0h |
| #04 (storeys 3 to 6)Blk 21 · storeys 3 to 6 | SE | Out of the estate: Seastrand, 64 m | 0.1h |
| #22 (storeys 3 to 6)Blk 29 · storeys 3 to 6 | NW | Pasir Ris Rise, 36 m | 4.0h |
| #23 (storeys 3 to 6)Blk 29 · storeys 3 to 6 | NW | Pasir Ris Rise, 41 m | 4.0h |
| Stack | Faces | Looks onto | Sun after 2pm |
|---|---|---|---|
| #07 (storeys 3 to 6)Blk 23 · storeys 3 to 6 | SE | Out of the estate: Seastrand, 37 m | 0.1h |
| #10 (storeys 3 to 6)Blk 23 · storeys 3 to 6 | SE | Out of the estate: Seastrand, 34 m | 0.1h |
| #32 (storeys 3 to 6)Blk 33 · storeys 3 to 6 | N | Out of the estate: Sea Esta, 102 m | 2.0h |
| #34 (storeys 3 to 6)Blk 35 · storeys 3 to 6 | N | Pasir Ris Link, 19 m | 2.1h |
| #35 (storeys 3 to 6)Blk 35 · storeys 3 to 6 | N | Pasir Ris Link, 19 m | 2.2h |
| #14 (storeys 3 to 6)Blk 25 · storeys 3 to 6 | S | Pasir Ris Drive 3, 20 m | 2.8h |
Sun is hours of direct sun a day after 2pm, averaged over the year at the middle storey of the stack, after shade from the buildings around it. Least sun first.
Every Watercolours layout
Show all 45 layoutsHide the table
| Layout | Type | Size | Stacks | Faces |
|---|---|---|---|---|
| A1b | 2-Bedroom | 743 sq ft | #04 (storeys 3 to 6), #05 (storeys 3 to 6), #22 (storeys 3 to 6), #23 (storeys 3 to 6) | SE, NW |
| A1c | 2-Bedroom | 786 sq ft | #04 (storeys 7 to 12), #05 (storeys 7 to 12), #22 (storeys 7 to 12), #23 (storeys 7 to 12) | SE, NW |
| A1a | 2-Bedroom | 861 sq ft | #04 (storey 2), #05 (storey 2), #22 (storey 2), #23 (storey 2) | SE, NW |
| A1G | 2-Bedroom | 1,001 sq ft | #04 (storey 1), #05 (storey 1), #22 (storey 1), #23 (storey 1) | SE, NW |
| B1b | 3-Bedroom Compact | 915 sq ft | #07 (storeys 3 to 6), #10 (storeys 3 to 6), #14 (storeys 3 to 6), #15 (storeys 3 to 6), #18 (storeys 3 to 6), #25 (storeys 3 to 6), #28 (storeys 3 to 6), #32 (storeys 3 to 6), #34 (storeys 3 to 6), #35 (storeys 3 to 6) | SE, S, NW, N |
| B2b | 3-Bedroom Compact | 915 sq ft | #03 (storeys 3 to 6), #21 (storeys 3 to 6) | NE, SW |
| B4b | 3-Bedroom Standard | 936 sq ft | #06 (storeys 3 to 6), #24 (storeys 3 to 6) | NW, SE |
| B5b | 3-Bedroom Standard | 936 sq ft | #01 (storeys 3 to 6), #19 (storeys 3 to 6) | NW, SE |
| B2c | 3-Bedroom Compact | 947 sq ft | #03 (storeys 7 to 11), #21 (storeys 7 to 11) | NE, SW |
| B1c | 3-Bedroom Compact | 958 sq ft | #07 (storeys 7 to 10), #10 (storeys 7 to 11), #14 (storeys 7 to 11), #15 (storeys 7 to 10), #18 (storeys 7 to 11), #25 (storeys 7 to 10), #28 (storeys 7 to 11), #32 (storeys 7 to 11), #34 (storeys 7 to 11), #35 (storeys 7 to 10) | SE, S, NW, N |
| B3b | 3-Bedroom Standard | 958 sq ft | #11 (storeys 3 to 6), #29 (storeys 3 to 6) | S, N |
| B6b | 3-Bedroom Standard | 958 sq ft | #02 (storeys 3 to 11), #20 (storeys 3 to 11) | NW, SE |
| B4c | 3-Bedroom Standard | 969 sq ft | #06 (storeys 7 to 11), #24 (storeys 7 to 11) | NW, SE |
| B5c | 3-Bedroom Standard | 969 sq ft | #01 (storeys 7 to 11), #19 (storeys 7 to 11) | NW, SE |
| B1a | 3-Bedroom Compact | 990 sq ft | #07 (storey 2), #10 (storey 2), #14 (storey 2), #15 (storey 2), #18 (storey 2), #25 (storey 2), #28 (storey 2), #32 (storey 2), #34 (storey 2), #35 (storey 2) | SE, S, NW, N |
| B2a | 3-Bedroom Compact | 1,001 sq ft | #03 (storey 2), #21 (storey 2) | NE, SW |
| B3c | 3-Bedroom Standard | 1,001 sq ft | #11 (storeys 7 to 12), #29 (storeys 7 to 12) | S, N |
| B4a | 3-Bedroom Standard | 1,023 sq ft | #06 (storey 2), #24 (storey 2) | NW, SE |
| B5a | 3-Bedroom Standard | 1,033 sq ft | #01 (storey 2), #19 (storey 2) | NW, SE |
| B3a | 3-Bedroom Standard | 1,044 sq ft | #11 (storey 2), #29 (storey 2) | S, N |
| B6a | 3-Bedroom Standard | 1,066 sq ft | #02 (storey 2), #20 (storey 2) | NW, SE |
| B7b | 3-Bedroom Dual Key | 1,098 sq ft | #08 (storeys 3 to 6), #12 (storeys 3 to 6), #17 (storeys 3 to 6), #26 (storeys 3 to 6), #30 (storeys 3 to 6), #33 (storeys 3 to 6) | NW, N, SE, S |
| B7c | 3-Bedroom Dual Key | 1,141 sq ft | #08 (storeys 7 to 10), #12 (storeys 7 to 11), #17 (storeys 7 to 10), #26 (storeys 7 to 10), #30 (storeys 7 to 11), #33 (storeys 7 to 10) | NW, N, SE, S |
| B1G | 3-Bedroom Compact | 1,206 sq ft | #07 (storey 1), #10 (storey 1), #14 (storey 1), #15 (storey 1), #18 (storey 1), #25 (storey 1), #28 (storey 1), #32 (storey 1), #34 (storey 1), #35 (storey 1) | SE, S, NW, N |
| B7a | 3-Bedroom Dual Key | 1,238 sq ft | #08 (storey 2), #12 (storey 2), #17 (storey 2), #26 (storey 2), #30 (storey 2), #33 (storey 2) | NW, N, SE, S |
| B6G | 3-Bedroom Standard | 1,249 sq ft | #02 (storey 1), #20 (storey 1) | NW, SE |
| B2G | 3-Bedroom Compact | 1,270 sq ft | #03 (storey 1), #21 (storey 1) | NE, SW |
| B4G | 3-Bedroom Standard | 1,292 sq ft | #06 (storey 1), #24 (storey 1) | NW, SE |
| B5G | 3-Bedroom Standard | 1,292 sq ft | #01 (storey 1), #19 (storey 1) | NW, SE |
| B3G | 3-Bedroom Standard | 1,302 sq ft | #11 (storey 1), #29 (storey 1) | S, N |
| B7G | 3-Bedroom Dual Key | 1,485 sq ft | #08 (storey 1), #12 (storey 1), #17 (storey 1), #26 (storey 1), #30 (storey 1), #33 (storey 1) | NW, N, SE, S |
| B6P | 3-Bedroom Standard Penthouse | 1,625 sq ft | #02 (storey 12), #20 (storey 12) | NW, SE |
| B1P | 3-Bedroom Compact Penthouse | 1,733 sq ft | #07 (storey 11), #14 (storey 12), #15 (storey 11), #25 (storey 11), #32 (storey 12), #35 (storey 11) | SE, S, NW, N |
| B2P | 3-Bedroom Compact Penthouse | 1,755 sq ft | #03 (storey 12), #21 (storey 12) | NE, SW |
| B4P | 3-Bedroom Standard Penthouse | 1,787 sq ft | #06 (storey 12), #24 (storey 12) | NW, SE |
| B5P | 3-Bedroom Standard Penthouse | 1,787 sq ft | #01 (storey 12), #19 (storey 12) | NW, SE |
| B7P | 3-Bedroom Dual Key Penthouse | 1,873 sq ft | #08 (storey 11), #12 (storey 12), #17 (storey 11), #26 (storey 11), #30 (storey 12), #33 (storey 11) | NW, N, SE, S |
| C2b | 4-Bedroom | 1,238 sq ft | #09 (storeys 3 to 10), #13 (storeys 3 to 11), #27 (storeys 3 to 10), #31 (storeys 3 to 11) | NW, N, SE, S |
| C1b | 4-Bedroom Dual Key | 1,281 sq ft | #16 (storeys 3 to 10), #36 (storeys 3 to 10) | N, S |
| C1a | 4-Bedroom Dual Key | 1,335 sq ft | #16 (storey 2), #36 (storey 2) | N, S |
| C2a | 4-Bedroom | 1,378 sq ft | #09 (storey 2), #13 (storey 2), #27 (storey 2), #31 (storey 2) | NW, N, SE, S |
| C1G | 4-Bedroom Dual Key | 1,615 sq ft | #16 (storey 1), #36 (storey 1) | N, S |
| C2G | 4-Bedroom | 1,658 sq ft | #09 (storey 1), #13 (storey 1), #27 (storey 1), #31 (storey 1) | NW, N, SE, S |
| C1P | 4-Bedroom Dual Key Penthouse | 2,174 sq ft | #16 (storey 11), #36 (storey 11) | N, S |
| C2P | 4-Bedroom Penthouse | 2,282 sq ft | #09 (storey 11), #13 (storey 12), #27 (storey 11), #31 (storey 12) | NW, N, SE, S |
Frequently asked questions
How many layouts does Watercolours have?
Watercolours has 45 layouts across its 416 homes: 4 2-bed, 33 3-bed, 8 4-bed. The developer's floor plan is on this page for 45 of them.
What are the smallest and biggest layouts at Watercolours?
The smallest is type A1b (2-Bedroom, 743 sq ft) and the biggest is type C2P (4-Bedroom Penthouse, 2,282 sq ft).
Which Watercolours layout gets the least afternoon sun?
Type A1b in stack #05 (storeys 3 to 6), facing SE: about 0.0 hours of direct sun a day after 2pm, averaged over the year at the middle storey and after shade from the buildings around it. The same layout in another stack can face a different way, so compare stack by stack.
