The Avenir
District 9 · 376 homes · Freehold · Resale · completed 2024

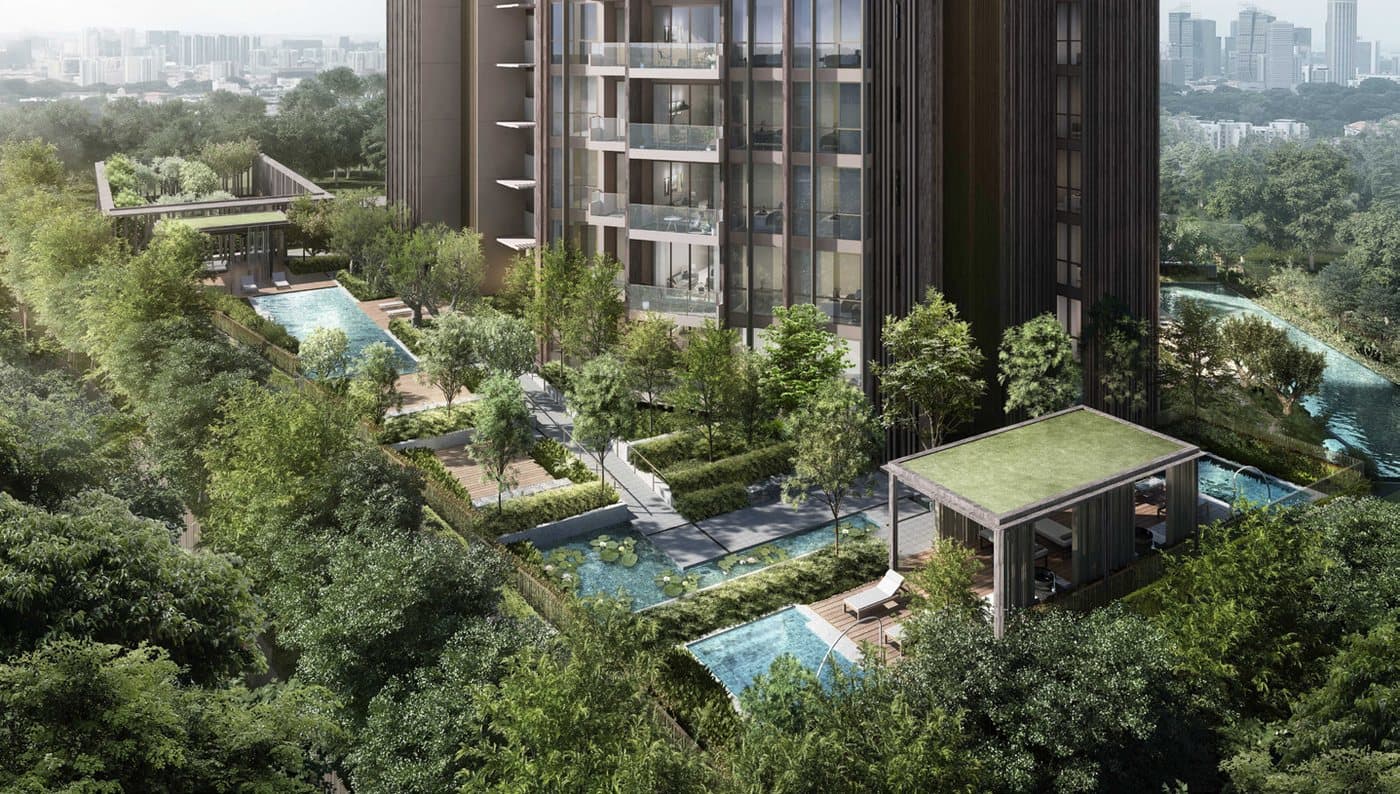

Artist's impression: Carmel Development Pte. Ltd.
All 11 stacks of The Avenir (8 and 10 River Valley Close) in 3D on the real map, beside the buildings around them at their real heights. Pick a stack and a storey to see its facing, its view and its hours of sun. Recent sale prices, rent and its grade are on the The Avenir resale scorecard.
Coolest stacksEvery stack ranked by direct sun after 2pm, least first.OpenHide
Working out every stack…
How to read the map and the colours
Every home is drawn floor by floor, coloured by unit type, in the same colours as the developer’s site plan legend. Tap a stack or its number to pick it. Drag to move the map; hold Ctrl or Command and drag (or right-drag) to turn and tilt it. On a phone, one finger moves it and two fingers pinch, twist and tilt it. Zoom in to see every stack number. Navy: your stack. Orange: your storey. Dashed gold line: the view straight out of the window. Dark patches: shadows of the taller buildings at 15:00 on 15/10.
- 1-Bedroom
- 2-Bedroom
- 3-Bedroom
- 3-Bedroom (with Private Lift)
- 4-Bedroom (with Private Lift)
- 4-Bedroom + Family (with Private Lift)
The Avenir in brief
- Least afternoon sun
- Stacks #01, #02: under an hour of direct sun after 2pm in every month.
- Blocked view
- Stacks #03, #07: face Block 10, 8 Saint Thomas, as tall as the stack or taller.
Read at the middle storey of each stack. The tool above shows any storey.
Every stack at a glance
Show the table of all 11 stacksHide the table
Computed for the middle storey of each tower (storey 18 in the 36-storey blocks). Sun columns are hours of direct sun on the window on 21 June and 21 December after shading by other buildings; “Afternoon sun” lists the months with an hour or more after 2pm. Open the tool for any other storey or date.
Block 10 · 36 storeys · 4 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #08 | 3-Bedroom (with Private Lift) | NNE 18° | The grounds | The Regalia, 89 m (seen over from storey 23); behind it One Devonshire, 326 m (at least as tall as this stack) | 12.2h | 0h | Apr–Aug |
| #09 | 4-Bedroom (with Private Lift) | NNE 18° | The grounds | The Regalia, 90 m (seen over from storey 23) | 12.2h | 0h | May–Aug |
| #10 | 4-Bedroom (with Private Lift) | SSW 198° | Out of the estate: Rivergate, 203 m | Rivergate, 203 m (at least as tall as this stack) | 0h | 8.3h | Aug–Apr |
| #11 | 4-Bedroom + Family (with Private Lift) | SSW 198° | Out of the estate: Low-rise building, 125 m | Low-rise building, 125 m (seen over from storey 5) | 0h | 8.9h | Aug–Apr |
Block 8 · 36 storeys · 7 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #01 | 2-Bedroom | ESE 109° | The grounds | Euro-Asia Court, 89 m (seen over from storey 16) | 4.1h | 4.9h | None |
| #02 | 1-Bedroom | E 98° | The grounds | Martin Place Residences, 187 m (seen over from storey 9) | 4.2h | 4.5h | None |
| #03 | 3-Bedroom | SE 145° · corner | Block 10 across the grounds, 47 m | Block 10, 47 m (at least as tall as this stack) | 2.3h | 6.6h | Dec–Jan |
| #04 | 2-Bedroom | S 191° | The grounds | Low-rise building, 81 m (seen over from storey 5) | 0h | 7.9h | Sep–Mar |
| #05 | 3-Bedroom (with Private Lift) | SSW 197° | The grounds | Low-rise building, 69 m (seen over from storey 5) | 0h | 10.7h | Aug–Apr |
| #06 | 3-Bedroom | NW 318° · corner | Out of the estate: The Morningside, 69 m | The Morningside, 69 m (seen over from storey 26) | 7.9h | 4.0h | All year |
| #07 | 1-Bedroom | N 352° | Out of the estate: 8 Saint Thomas, 130 m | 8 Saint Thomas, 130 m (at least as tall as this stack) | 11.1h | 0h | May–Aug |
Frequently asked questions
Which The Avenir stacks avoid the afternoon sun?
2 stacks get under an hour of direct sun after 2pm, every month of the year.
- #01
- #02
Mid-height storey, after shading by neighbouring blocks. The tool above shows any storey.
Which The Avenir stacks take the afternoon sun most of the year?
1 stack gets an hour or more of direct sun after 2pm in at least ten months.
- #06
Mid-height storey.
Which The Avenir stacks have the most open view?
The most open stacks at mid-height:
- #02
- #04
- #05
- #06
- #10
- #11
Which The Avenir stacks look straight at another block?
These face a building at least as tall as themselves, so no storey looks over it.
Block 10
- #03 · 47 m
8 Saint Thomas
- #07 · 130 m
Which The Avenir stacks face a pool?
None of the stacks has pool water across a quarter or more of its window.
Which The Avenir stacks face a road?
Grouped by the road each stack looks onto.
River Valley Close
- #02
Road within 80 m straight ahead, with no other tower of the project in between.
Can I see the The Avenir floor plans?
Yes. Pick a stack and its floor plan shows beside the map, as the developer published it: 10 layouts, each with its size, the units it applies to and a key plan. Tap it to enlarge.
How this is worked out, and its limits
Stacks are traced from the developer’s site plan onto the map, and the sun and view are worked out against the buildings around them. Details are as at 2026-10-15 and can change.
Show the method and its limitsHide the method
Where the stacks are. Each stack’s outline is traced from the developer’s site plan and fitted to the land parcel on the map. Expect positions within a few metres and bearings within a few degrees. Unit types come from the developer’s site plan legend and add up to the published unit mix, and the map uses those same colours; 11 of the 11 stacks are also named on the developer’s floor plans, and all of those match.
Facing. A mid-block stack faces away from the side of the block it sits on. End and corner stacks (marked “corner”) have windows on more than one side; 2 of them are not yet checked against the floor plan, so the tool uses the main facade.
What it looks onto. The pools, lawns, courts and pavilions are read off the developer’s site plan and placed on the map with the same fit as the stacks, so they are right to within a few metres. A stack “looks onto” a pool when at least a quarter of 17 sight lines across its window (40° either side of the facing) reach the water before another tower of the project. It “faces out of the estate” when the site boundary is within 50 m straight ahead. Facility names and positions are the developer’s and can change before completion.
Heights. Towers use the developer’s storey counts at an assumed 3.3 m per storey. Buildings standing around the estate use the height in the Singapore Land Authority’s 3D model, read off OneMap 3D on 2 October 2026; where one outline covers a tower and its podium, it is cut into its parts. A building not yet in that model (still being built) uses its published storey count at 3.6 m a storey for a condo and 3.0 m for an HDB block, the averages measured for built ones. Every building is modelled as its footprint raised straight up, on level ground: no roofs, balconies, trees or slopes.
Sun. The same solar model as the Sun Path & Facing Calculator, checked to within about three minutes, with a building in the way counted as shade. The window is a point at mid-storey height on the middle of the outside wall. Balconies, overhangs and cloud cut real sun further, so read the hours as a ceiling.
Sun across the year and coolest stacks. The year grid tests the window every half hour on the 15th of each month. Coolest stacks ranks by the average of those twelve days in hours of direct sun after 2pm, least first, at the middle storey of each stack with shade from other buildings taken off; the hours for the whole day sit beside it. For a home at the end of its block the afternoon figure also counts the sun on its end wall.
Floor plans. The developer’s own pages, unaltered, matched to each stack by the layout code on the developer’s schematic diagram. A stack the plan lists as a mirror unit is the plan flipped. Floor plans: Carmel Development Pte. Ltd., The Avenir sales brochure. Developer's plans, subject to change; areas are approximate and include air-con ledge and balcony.
Not shown. Asking prices: a resale home is priced by its owner, and what is on the market changes by the week. Anything the developer did not publish is not shown either. Details are as at 2026-10-15 and can change. Sources: Developer's brochure (Carmel Development Pte. Ltd.); OpenStreetMap.
