Fernvale Acres
District 28 · 330 homes · 99-year leasehold (HDB) · HDB · completed 2021 · MOP from 2026

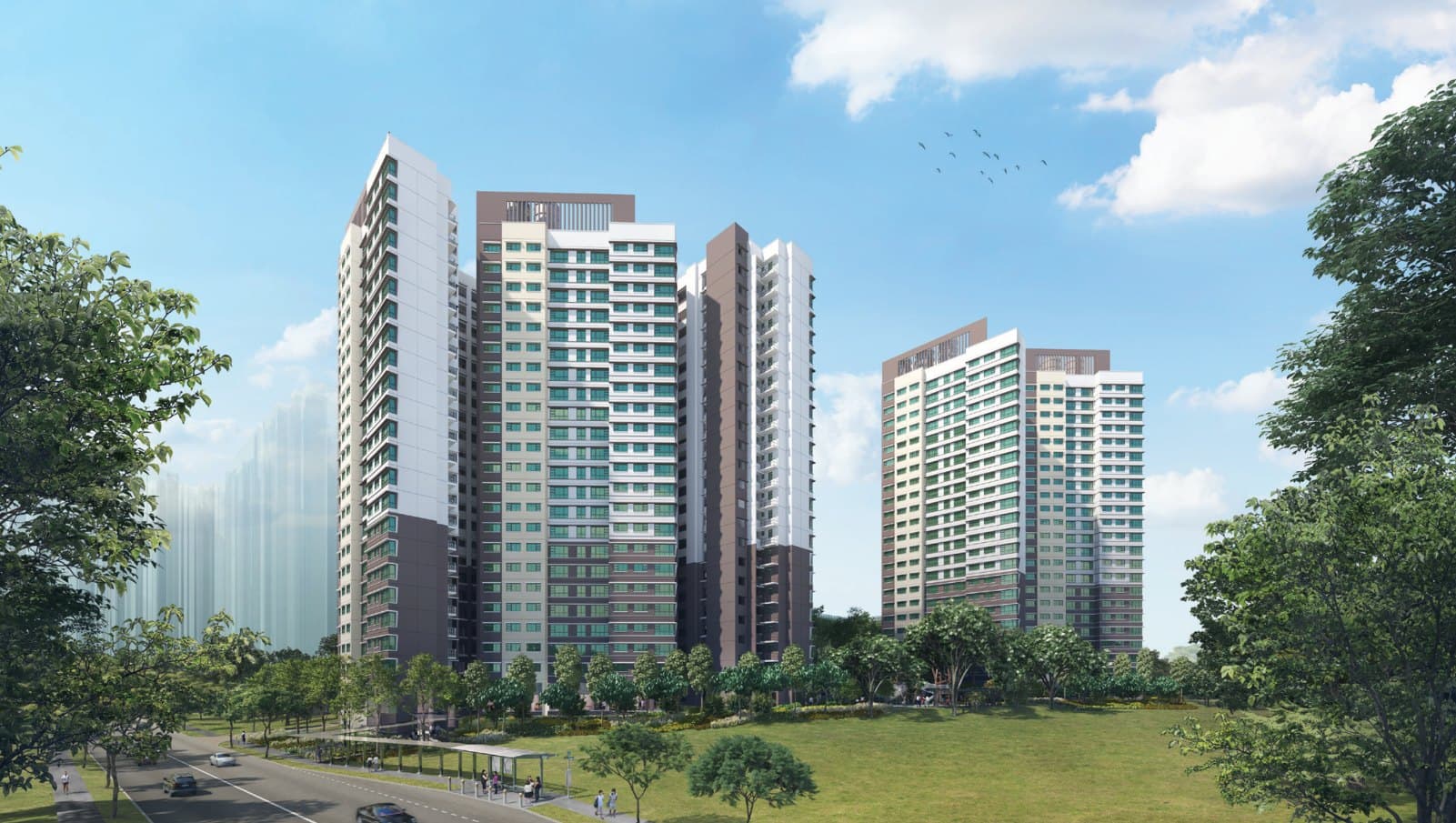

Artist's impression, HDB
All 15 stacks of Fernvale Acres (402A and 402B Fernvale Lane) in 3D on the real map, beside the buildings around them at their real heights. Pick a stack and a storey to see its facing, its view and its hours of sun. Both blocks were completed in 2021 (HDB), so the five-year minimum occupation period (MOP) ends from 2026, counted from each owner’s key collection. Homes can be sold on the resale market once their own MOP is over.
Coolest stacksEvery stack ranked by direct sun after 2pm, least first.OpenHide
Working out every stack…
How to read the map and the colours
Every home is drawn floor by floor, coloured by unit type, in the same colours as the developer’s storey plans. Tap a stack or its number to pick it. Drag to move the map; hold Ctrl or Command and drag (or right-drag) to turn and tilt it. On a phone, one finger moves it and two fingers pinch, twist and tilt it. Zoom in to see every stack number. Navy: your stack. Orange: your storey. Dashed gold line: the view straight out of the window. Dark patches: shadows of the taller buildings at 15:00 on 18/10.
- 4-room, 93 sqm
- 5-room, 113 sqm
Fernvale Acres in brief
- Least afternoon sun
- Stacks #217, #223, #225: under an hour of direct sun after 2pm in every month.
- Blocked view
- Stacks #207, #213, #217, #221, #223, #225: face Block 402B, Blk 401F Fernvale Lane, 11 Fernvale Lane and 2 more, as tall as the stack or taller.
Read at the middle storey of each stack. The tool above shows any storey.
Every stack at a glance
Show the table of all 15 stacksHide the table
Computed for the middle storey of each tower (storey 12 in the 23-storey blocks). Sun columns are hours of direct sun on the window on 21 June and 21 December after shading by other buildings; “Afternoon sun” lists the months with an hour or more after 2pm. Open the tool for any other storey or date.
Block 402A · 23 storeys · 9 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #201 | 4-room, 93 sqm | SSW 194° | Out of the estate: Blk 402 Fernvale Lane, 22 m | Blk 402 Fernvale Lane, 22 m (seen over from storey 6) | 0h | 6.8h | Sep–Apr |
| #203 | 4-room, 93 sqm | SSW 194° | The grounds | Blk 402 Fernvale Lane, 19 m (seen over from storey 6) | 0h | 7.7h | Sep–Apr |
| #205 | 4-room, 93 sqm | SSW 194° | The grounds | Blk 402 Fernvale Lane, 14 m (seen over from storey 6) | 0h | 10.3h | Sep–Apr |
| #207 | 5-room, 113 sqm | SSW 194° | Block 402B across the grounds, 40 m | Block 402B, 40 m (at least as tall as this stack) | 0h | 10.5h | Sep–Apr |
| #209 | 5-room, 113 sqm | NNW 330° | Fernvale Lane, 55 m | Blk 401G Fernvale Lane, 96 m (seen over from storey 21) | 7.9h | 2.3h | All year |
| #211 | 4-room, 93 sqm | NNW 330° | Fernvale Lane, 40 m | Blk 401G Fernvale Lane, 85 m (seen over from storey 21) | 6.1h | 2.1h | All year |
| #213 | 5-room, 113 sqm | NNE 14° | Fernvale Lane, 16 m | Blk 401F Fernvale Lane, 48 m (at least as tall as this stack) | 12.0h | 0h | Apr–Aug |
| #215 | 4-room, 93 sqm | NNE 14° | Fernvale Lane, 18 m | Man Kok Sua Chong Yee Temple, 306 m (seen over from storey 4) | 12.0h | 0h | Apr–Aug |
| #217 | 5-room, 113 sqm | ESE 104° | Out of the estate: 11 Fernvale Lane, 46 m | 11 Fernvale Lane, 46 m (at least as tall as this stack) | 5.7h | 5.4h | None |
Block 402B · 23 storeys · 6 stacks
| Stack | Type | Faces | Looks onto | Buildings straight ahead | 21 Jun | 21 Dec | Afternoon sun |
|---|---|---|---|---|---|---|---|
| #219 | 5-room, 113 sqm | NNE 14° | Out of the estate: Blk 400 Fernvale Lane, 164 m | Blk 400 Fernvale Lane, 164 m (seen over from storey 2); behind it Blk 401E Fernvale Lane, 225 m (at least as tall as this stack) | 9.3h | 0h | Apr–Aug |
| #221 | 4-room, 93 sqm | NNE 14° | Block 402A across the grounds, 40 m | Block 402A, 40 m (at least as tall as this stack) | 9.8h | 0h | Apr–Aug |
| #223 | 4-room, 93 sqm | ESE 104° | Out of the estate: Blk 402 Fernvale Lane, 14 m | Blk 402 Fernvale Lane, 14 m (seen over from storey 6); behind it 23 Fernvale Lane, 74 m (at least as tall as this stack) | 4.3h | 4.7h | None |
| #225 | 4-room, 93 sqm | ESE 104° | Out of the estate: Blk 402 Fernvale Lane, 14 m | Blk 402 Fernvale Lane, 14 m (seen over from storey 6); behind it 23 Fernvale Lane, 76 m (at least as tall as this stack) | 4.4h | 6.4h | None |
| #227 | 5-room, 113 sqm | NNW 330° | Out of the estate: 33 Fernvale Lane, 70 m | 33 Fernvale Lane, 70 m (seen over from storey 16) | 8.1h | 2.6h | All year |
| #229 | 4-room, 93 sqm | NNW 330° | Out of the estate: 31 Fernvale Lane, 92 m | 31 Fernvale Lane, 92 m (seen over from storey 16) | 6.3h | 2.6h | All year |
Price at launch
HDB’s selling prices before grants at the November 2018 BTO sales launch. Flats were priced by storey and facing, and buyers then deducted their grants. These are launch prices, not what the flats resell for today.
4-Room
$270,000 to $353,000
198 flats offered
5-Room
$366,000 to $438,000
132 flats offered
Source: HDB, November 2018 BTO sales launch release (archived copy).
Frequently asked questions
Which Fernvale Acres stacks avoid the afternoon sun?
3 stacks get under an hour of direct sun after 2pm, every month of the year.
- #217
- #223
- #225
Mid-height storey, after shading by neighbouring blocks. The tool above shows any storey.
Which Fernvale Acres stacks take the afternoon sun most of the year?
4 stacks get an hour or more of direct sun after 2pm in at least ten months.
- #209
- #211
- #227
- #229
Mid-height storey.
Which Fernvale Acres stacks have the most open view?
The most open stacks at mid-height:
- #201
- #203
- #205
- #207
- #223
- #225
Which Fernvale Acres stacks look straight at another block?
These face a building at least as tall as themselves, so no storey looks over it.
Block 402B
- #207 · 40 m
Blk 401F Fernvale Lane
- #213 · 48 m
11 Fernvale Lane
- #217 · 46 m
Block 402A
- #221 · 40 m
23 Fernvale Lane
- #223 · 74 m
- #225 · 76 m
Which Fernvale Acres stacks face a road?
Grouped by the road each stack looks onto.
Fernvale Lane
- #209
- #211
- #213
- #215
Road within 80 m straight ahead, with no other tower of the project in between.
What did Fernvale Acres cost at launch?
At HDB's November 2018 BTO sales launch, before grants: 4-Room $270,000 to $353,000, 5-Room $366,000 to $438,000. These are HDB's own figures from its launch release; flats were priced by storey and facing, and buyers then deducted their grants. Resale prices today are different.
Can I see the Fernvale Acres floor plans?
Yes. Pick a stack and its floor plan shows beside the map, as the developer published it: 3 layouts, each with its size, the units it applies to and a key plan. Tap it to enlarge.
How this is worked out, and its limits
Stacks are traced from the developer’s site plan onto the map, and the sun and view are worked out against the buildings around them. Details are as at 2026-10-18 and can change.
Show the method and its limitsHide the method
Where the stacks are. Each stack’s outline is traced from the developer’s site plan and fitted to the land parcel on the map. Expect positions within a few metres and bearings within a few degrees. Unit types come from the developer’s storey plans and add up to the published unit mix, and the map uses those same colours; 0 of the 15 stacks are also named on the developer’s floor plans, and all of those match.
Facing. The facing is the side the living room is on, read from the developer’s floor plan for each of the 15 stacks. End and corner homes also have bedroom windows on a second side, which the tool does not model.
Heights. Towers use the developer’s storey counts at an assumed 3.05 m per storey. Buildings standing around the estate use the height in the Singapore Land Authority’s 3D model, read off OneMap 3D on 2 October 2026; where one outline covers a tower and its podium, it is cut into its parts. A building not yet in that model (still being built) uses its published storey count at 3.6 m a storey for a condo and 3.0 m for an HDB block, the averages measured for built ones. Every building is modelled as its footprint raised straight up, on level ground: no roofs, balconies, trees or slopes.
Sun. The same solar model as the Sun Path & Facing Calculator, checked to within about three minutes, with a building in the way counted as shade. The window is a point at mid-storey height on the middle of the outside wall. Balconies, overhangs and cloud cut real sun further, so read the hours as a ceiling.
Sun across the year and coolest stacks. The year grid tests the window every half hour on the 15th of each month. Coolest stacks ranks by the average of those twelve days in hours of direct sun after 2pm, least first, at the middle storey of each stack with shade from other buildings taken off; the hours for the whole day sit beside it. For a home at the end of its block the afternoon figure also counts the sun on its end wall.
Floor plans. The developer’s own pages, unaltered, matched to each stack by the layout code on the developer’s schematic diagram. A stack the plan lists as a mirror unit is the plan flipped. Floor plans: HDB's sales brochure for Fernvale Acres, layout pictures. HDB shows two 5-room ideas of 113 sqm; stack 227 of Block 402B has the second one. Furniture is HDB's suggestion. Typical: the home on a given stack may differ in detail or be its mirror image. Not to scale, areas approximate.
Not shown. Asking prices: a resale home is priced by its owner, and what is on the market changes by the week. Anything the developer did not publish is not shown either. Details are as at 2026-10-18 and can change. Sources: HDB's sales brochure (November 2018); data.gov.sg (HDB Property Information); OpenStreetMap.
