Compare Lakeville layouts

51 layouts, 696 homes. Put two or three side by side: the plan, the size, what you gain and give up, and which way each stack faces.

Pick two or three layouts

The first one you pick is the one the others are measured against.

1-bed

2-bed

3-bed

4-bed

5-bed

Measured against

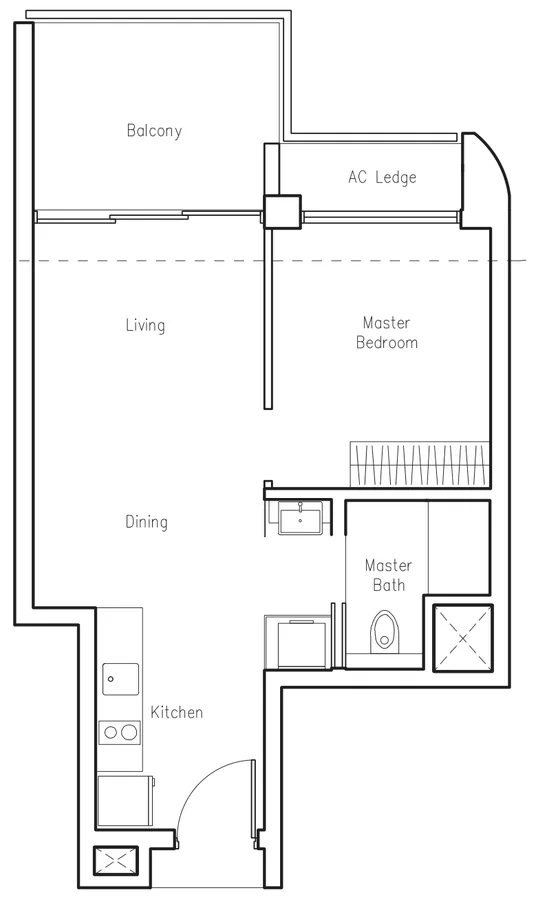

1-Bedroom

Size: 560 sq ft
Stacks: 2 · 30 homes

Option 2

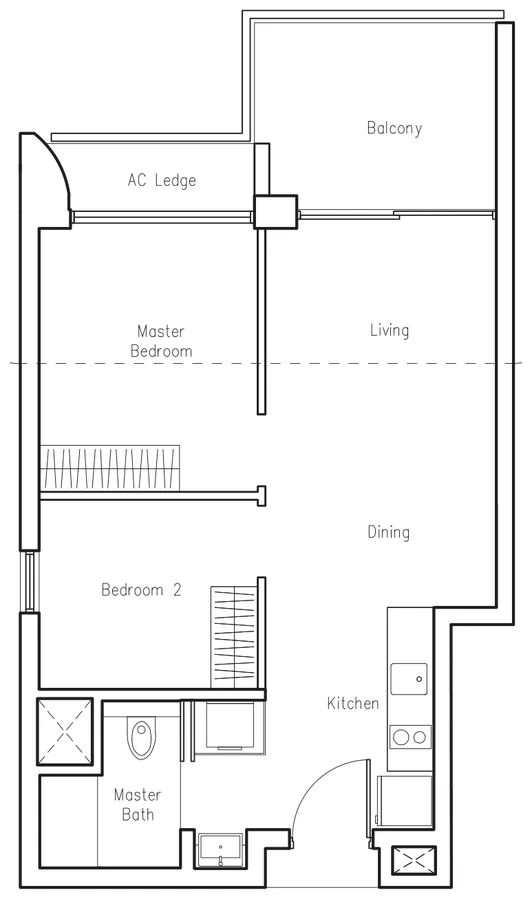

2-Bedroom

Size: 635 sq ft
Stacks: 4 · 60 homes

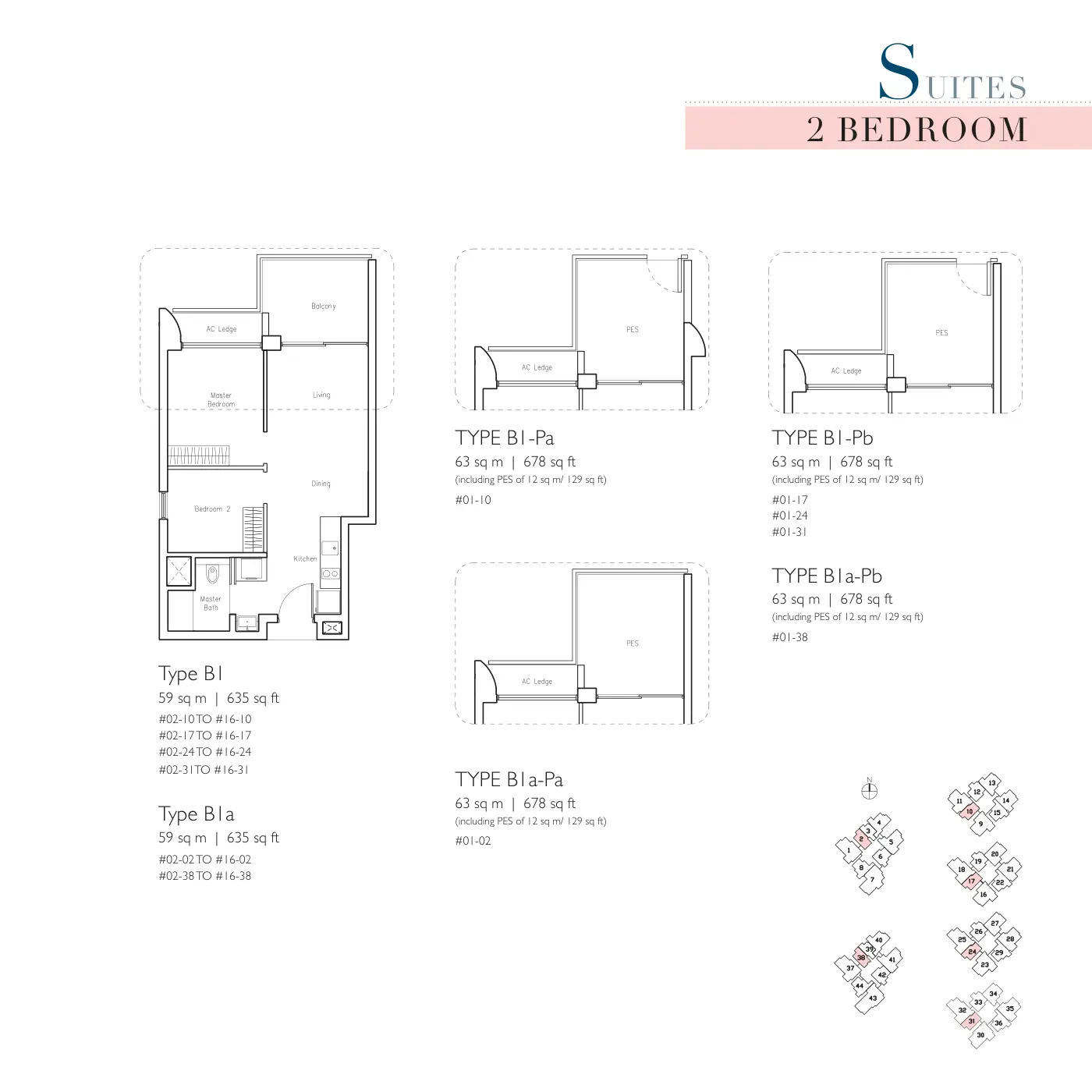

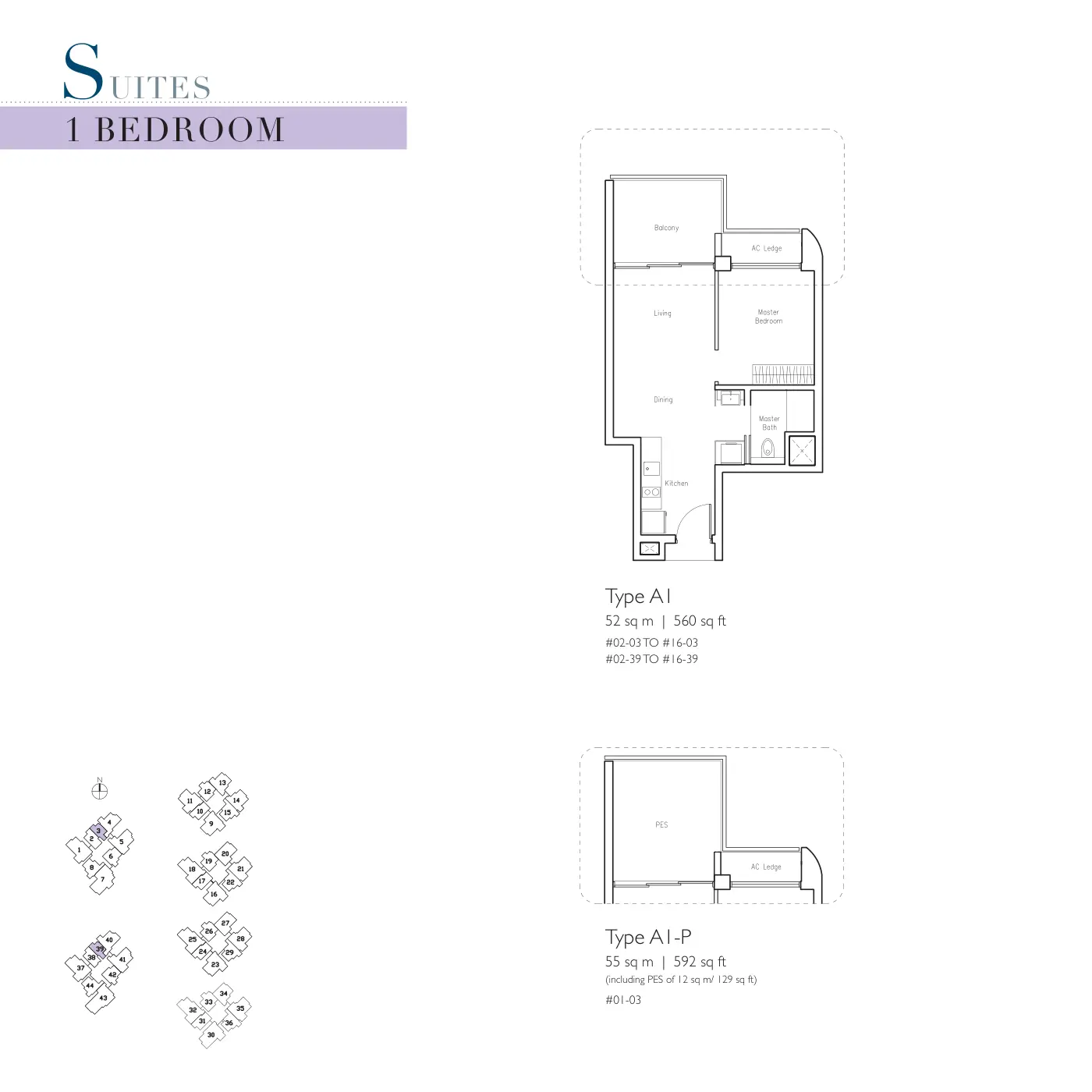

Drawn to the same scale, so a bigger home looks bigger. Tap a plan for the developer’s full page. Floor plans: MCL Land (Prestige) Pte Ltd, Lakeville sales brochure. Developer's plans, approximate and subject to change.

B1 instead of A1

Space

+75 sq ft

You gain

1 more bedroom (2 against 1)
75 sq ft more space (635 against 560)
More stacks to choose from: 4 (facing SW) against 2 (facing NW)

You give up

Nothing the figures show against A1.

Where each layout faces

Every stack that carries each layout. Tap a stack to see that home on the map, its view and its sun by the hour.

A1 · 1-Bedroom
Stack	Faces	Looks onto	Sun after 2pm
#39Blk 11 · storeys 2 to 16	NW	Jurong Lake Link, 50 m · Grand Entrance, 22 m	3.5h
#03 (storeys 2 to 16)Blk 1 · storeys 2 to 16	NW	Reflective Water Feature, 2 m	3.6h

B1 · 2-Bedroom
Stack	Faces	Looks onto	Sun after 2pm
#24 (storeys 2 to 16)Blk 7 · storeys 2 to 16	SW	Aqua Deck, 13 m · Wind Sculpture, 38 m · Spa Coves, 39 m	3.1h
#10 (storeys 2 to 16)Blk 3 · storeys 2 to 16	SW	Aqua Gym, 27 m · Viewing Deck, 9 m · Fountain Jets, 16 m	3.5h
#17 (storeys 2 to 16)Blk 5 · storeys 2 to 16	SW	Aqua Deck, 14 m · Cloud Steps, 24 m · 50m Lap Pool, 27 m	3.5h
#31 (storeys 2 to 16)Blk 9 · storeys 2 to 16	SW	Boon Lay Way, 46 m	4.2h

Sun is hours of direct sun a day after 2pm, averaged over the year at the middle storey of the stack, after shade from the buildings around it. Least sun first.

Back to the Lakeville map

Every Lakeville layout

Show all 51 layouts

Layout	Type	Size	Stacks	Faces
A1	1-Bedroom	560 sq ft	#03 (storeys 2 to 16), #39	NW
A1-P	1-Bedroom	592 sq ft	#03 (storey 1)	NW
B1	2-Bedroom	635 sq ft	#10 (storeys 2 to 16), #17 (storeys 2 to 16), #24 (storeys 2 to 16), #31 (storeys 2 to 16)	SW
B1a	2-Bedroom	635 sq ft	#02 (storeys 2 to 16), #38 (storeys 2 to 16)	NW
B1-Pa	2-Bedroom	678 sq ft	#10 (storey 1)	SW
B1-Pb	2-Bedroom	678 sq ft	#17 (storey 1), #24 (storey 1), #31 (storey 1)	SW
B1a-Pa	2-Bedroom	678 sq ft	#02 (storey 1)	NW
B1a-Pb	2-Bedroom	678 sq ft	#38 (storey 1)	NW
B2	2-Bedroom	721 sq ft	#06 (storeys 2 to 16), #42 (storeys 2 to 16)	SE
B3	2-Bedroom	732 sq ft	#12 (storeys 2 to 16), #19 (storeys 2 to 16), #26 (storeys 2 to 16), #33 (storeys 2 to 16)	NW
B4	2-Bedroom	764 sq ft	#15 (storeys 2 to 16)	SE
B4b	2-Bedroom	764 sq ft	#08 (storeys 2 to 16), #44 (storeys 2 to 16)	SW
B2-P	2-Bedroom	775 sq ft	#06 (storey 1), #42 (storey 1)	SE
B4a	2-Bedroom	775 sq ft	#22 (storeys 2 to 16), #29 (storeys 2 to 16), #36 (storeys 2 to 16)	SE
B4-P	2-Bedroom	807 sq ft	#15 (storey 1)	SE
B4a-P	2-Bedroom	807 sq ft	#22 (storey 1), #29 (storey 1), #36 (storey 1)	SE
B4b-P	2-Bedroom	807 sq ft	#08 (storey 1), #44 (storey 1)	SW
B3-Pa	2-Bedroom	872 sq ft	#12 (storey 1)	NW
B3-Pb	2-Bedroom	872 sq ft	#19 (storey 1), #26 (storey 1), #33 (storey 1)	NW
C1	3-Bedroom	872 sq ft	#34	NW
C1a	3-Bedroom	936 sq ft	#14 (storeys 2 to 16)	SE
C1b	3-Bedroom	947 sq ft	#13 (storeys 2 to 16)	NW
C2	3-Bedroom	969 sq ft	#04 (storeys 2 to 16), #40	NW
C3	3-Bedroom	990 sq ft	#20, #27	NW
C1a-P	3-Bedroom	1,066 sq ft	#14 (storey 1)	SE
C1b-P	3-Bedroom	1,076 sq ft	#13 (storey 1)	NW
C2-P	3-Bedroom	1,109 sq ft	#04 (storey 1)	NW
C4	3-Bedroom	1,119 sq ft	#21 (storeys 2 to 15), #28 (storeys 2 to 15), #35 (storeys 2 to 15)	SE
C5	3-Bedroom	1,141 sq ft	#09, #16 (storeys 2 to 16), #23 (storeys 2 to 16)	SE
C6	3-Bedroom	1,141 sq ft	#11 (storeys 2 to 16)	SW
C7	3-Bedroom	1,163 sq ft	#05 (storeys 2 to 16), #41 (storeys 2 to 15)	SE
C5-P	3-Bedroom	1,281 sq ft	#16 (storey 1), #23 (storey 1)	SE
C6-P	3-Bedroom	1,281 sq ft	#11 (storey 1)	SW
C4-P	3-Bedroom	1,324 sq ft	#21 (storey 1), #28 (storey 1), #35 (storey 1)	SE
C7-P	3-Bedroom	1,324 sq ft	#05 (storey 1), #41 (storey 1)	SE
D1	4-Bedroom	1,270 sq ft	#01 (storeys 3 to 15), #37 (storeys 2 to 15)	SW
D3	4-Bedroom	1,281 sq ft	#30 (storeys 2 to 15)	SE
D2	4-Bedroom	1,302 sq ft	#18 (storeys 2 to 15), #25 (storeys 2 to 15), #32 (storeys 2 to 15)	SW
D1-P	4-Bedroom	1,432 sq ft	#37 (storey 1)	SW
D3-P	4-Bedroom	1,442 sq ft	#30 (storey 1)	SE
D2-P	4-Bedroom	1,464 sq ft	#18 (storey 1), #25 (storey 1), #32 (storey 1)	SW
D4	4-Bedroom (Dual-Key)	1,475 sq ft	#07 (storeys 2 to 16)	SE
D4-P	4-Bedroom (Dual-Key)	1,668 sq ft	#07 (storey 1)	SE
PH1	4-Bedroom Penthouse	1,981 sq ft	#21 (storey 16), #28 (storey 16), #35 (storey 16)	SE
PH2	4-Bedroom Penthouse	2,056 sq ft	#41 (storey 16)	SE
PH4	4-Bedroom + Study Penthouse	2,228 sq ft	#01 (storey 16), #37 (storey 16)	SW
PH5	4-Bedroom + Study Penthouse	2,239 sq ft	#30 (storey 16)	SE
PH3	4-Bedroom + Study Penthouse	2,271 sq ft	#18 (storey 16), #25 (storey 16), #32 (storey 16)	SW
E1	5-Bedroom	1,528 sq ft	#43 (storeys 2 to 15)	SE
E1-P	5-Bedroom	1,862 sq ft	#43 (storey 1)	SE
PH6	5-Bedroom Penthouse	2,680 sq ft	#43 (storey 16)	SE

Frequently asked questions

How many layouts does Lakeville have?

Lakeville has 51 layouts across its 696 homes: 2 1-bed, 17 2-bed, 16 3-bed, 13 4-bed, 3 5-bed. The developer's floor plan is on this page for 51 of them.

What are the smallest and biggest layouts at Lakeville?

The smallest is type A1 (1-Bedroom, 560 sq ft) and the biggest is type PH6 (5-Bedroom Penthouse, 2,680 sq ft).

Which Lakeville layout gets the least afternoon sun?

Type B2 in stack #06 (storeys 2 to 16), facing SE: about 0.0 hours of direct sun a day after 2pm, averaged over the year at the middle storey and after shade from the buildings around it. The same layout in another stack can face a different way, so compare stack by stack.
